Active Control Engine Mount System
›
Circuit Diagram
Circuit Diagram

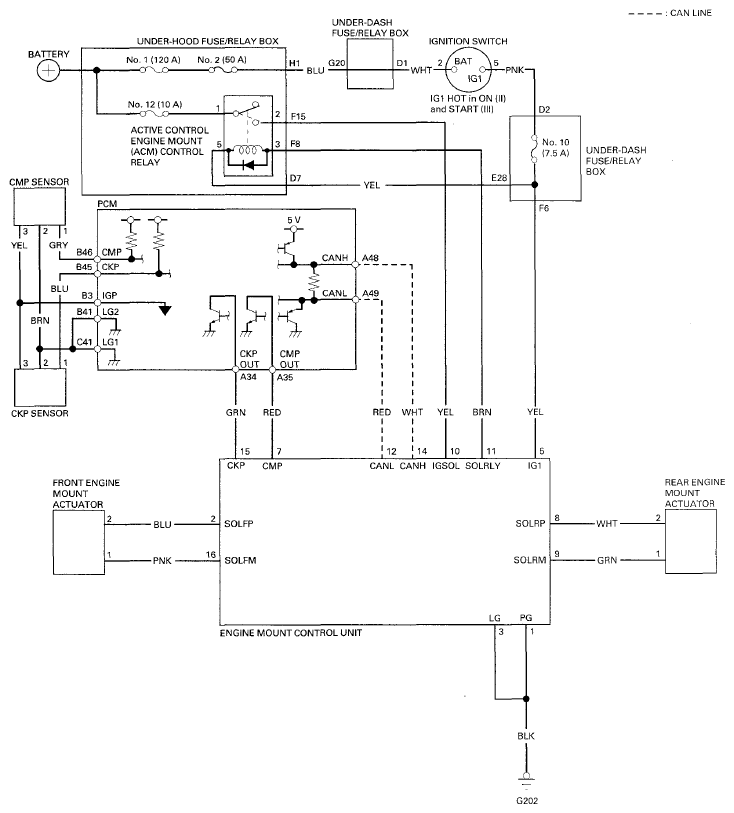

Fig 1: Front Engine Mount Actuator Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
