DTC P0A14: Front Engine Mount Actuator Circuit Malfunction
›
Notes
DTC P0A14: Front Engine Mount Actuator Circuit Malfunction: Notes

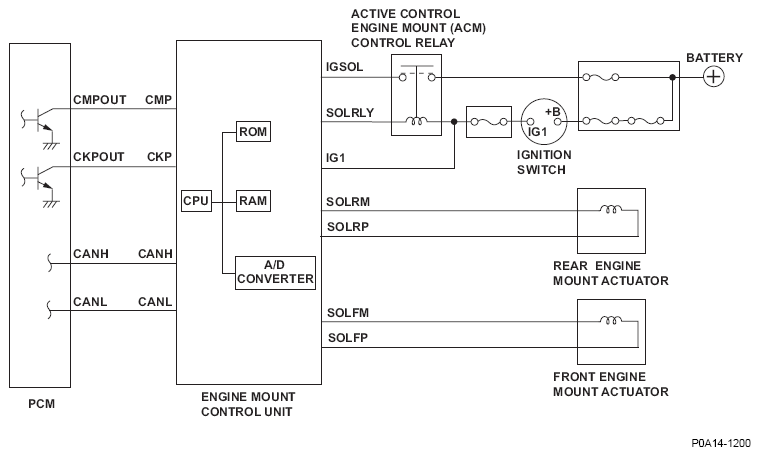

Fig 1: Engine Mount Actuator - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
