Component Location Index
Component Location Index

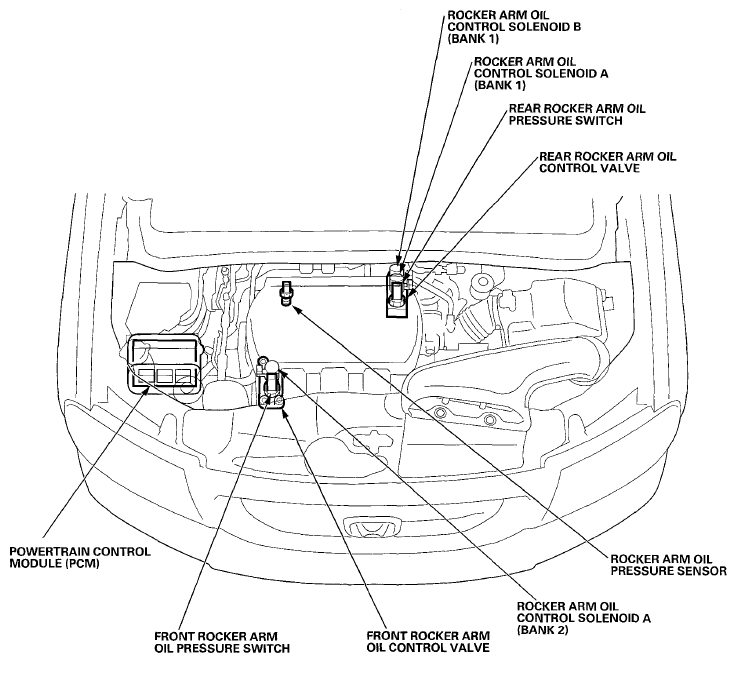

Fig 1: Variable Cylinder Management System Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
