Fan Motor Test

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the 2P connectors from the radiator fan motor (A) and the condenser fan motor (B).

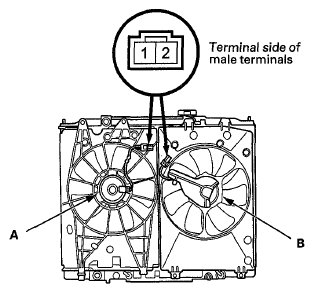

Fig 1: Identifying 2P Connectors From Radiator Fan Motor & Condenser Fan Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test each motor by connecting battery power to terminal No. 2 and ground to terminal No. 1.
If either motor fails to run or does not run smoothly, replace it (see RADIATOR AND FAN REPLACEMENT ).
