System Structure: Indicators
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

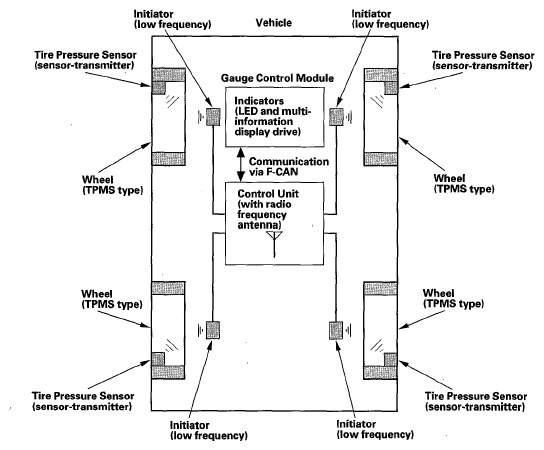

All indicators are in the gauge control module: The low tire pressure indicator (LED indicator), tire indicators (on the multi-information display) to show which tire is affected, and the TPMS indicator (LED indicator) that comes on only if there's a problem with the system. When two or more tire pressures are low, the low tire pressure indicator comes on about 5 seconds before the appropriate tire indicator. Once low pressure is detected, the system scans all four pressure sensors to ensure that it turns on the correct tire indicator.
