System Structure: Wheels
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

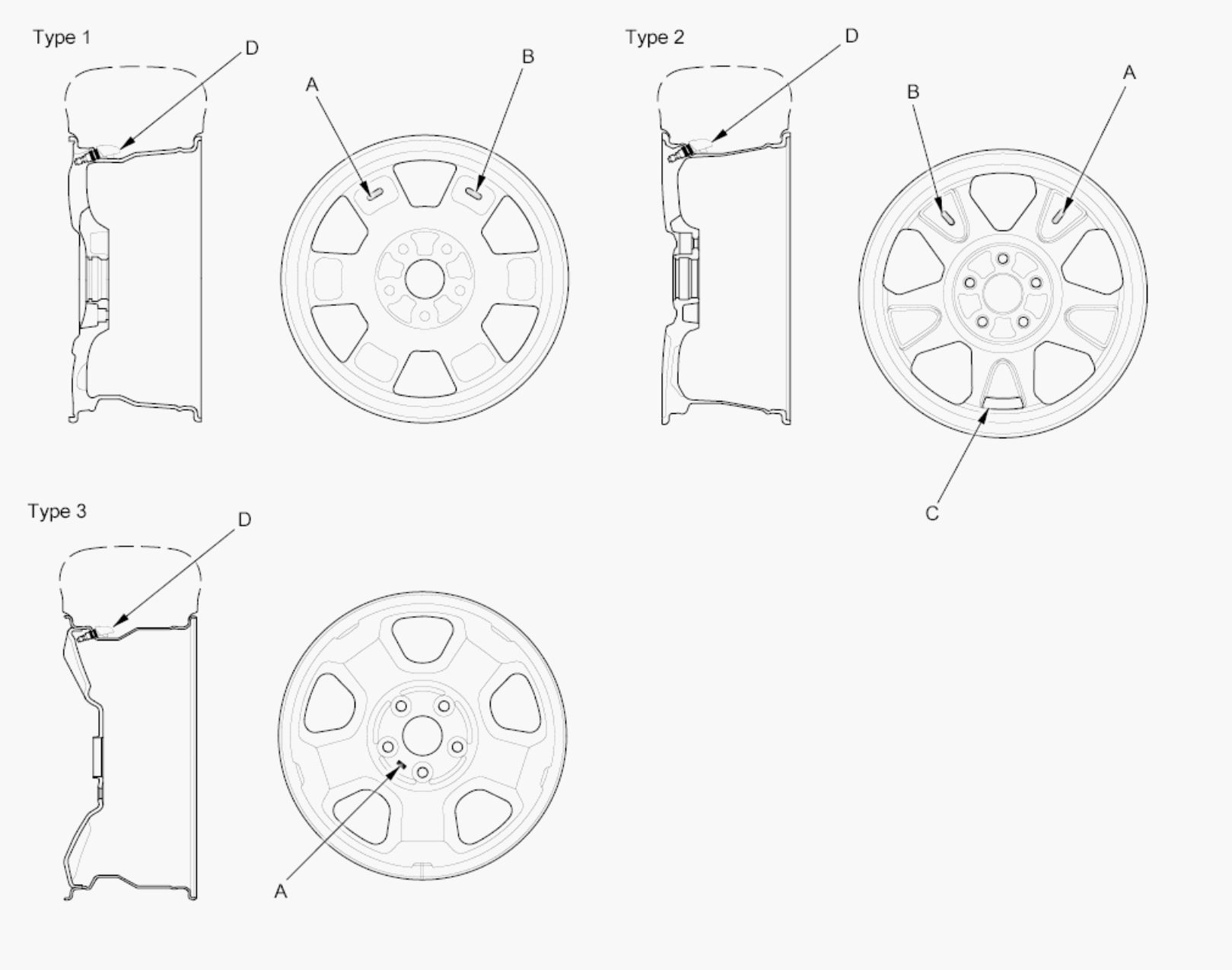

The TPMS will not work unless TPMS type wheels are installed on the vehicle. The original equipment wheels have a "SJC" mark (A) and a "TPMS" mark (B) on the back of the wheels, and are counterweighted (C) by adding material on the opposite side of the tire pressure sensor (D), to counterbalance the weight of the sensor.
