A/C Pressure Switch

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

The A/C pressure switch consists of a high-low pressure switch (A/C pressure switch A) and a middle pressure switch (A/C pressure switch B).

High-low pressure switch
If the refrigerant pressure becomes too high (due to blockage or lack of airflow at the condenser), or too low (due to leakage), the A/C pressure switch stops the A/C request signal to the PCM and the A/C compressor stops operating.
Middle pressure switch
If the refrigerant pressure goes above 1, 520 kPa (15.5 kgf/cm² , 221 psi), the A/C pressure switch closes to signal the PCM to change the speed of the A/C condenser fan and radiator fan to high. When the refrigerant pressure drops below 930 kPa (9.5 kgf/cm² , 135 psi), the A/C pressure switch opens to signal the PCM to change the speed of the A/C condenser fan and radiator fan to low.

A/C Pressure Switch Operation

A/C PRESSURE SWITCH OPERATION CHART

A/C System Pressure	Hi-Low Pressure Switch	Medium Pressure Switch	System Operation
Abnormally low pressure: Below 196 kPa (2.0 kgf/cm² , 28 psi)	OPEN	OPEN	The PCM disengages the compressor clutch. Radiator and A/C condenser fan control is based on engine coolant temperature
Normal operating pressure: Above 225 kPa (2.3 kgf/cm² , 33 psi) Below 930 kPa (9.5 kgf/cm² , 213 psi)	CLOSED	OPEN	The compressor clutch cycles. The radiator and A/C condenser fans operate at low speed.
High operating pressure: Above 1, 520 kPa (15.5 kgf/cm² , 221 psi) Below 2, 550 kPa (26.0 kgf/cm² , 370 psi)	CLOSED	CLOSED	The compressor clutch cycles. The radiator and A/C condenser fans operate at high speed.
Abnormally high pressure: More than 3, 140 kPa (32 kgf/cm² , 455 psi)	OPEN	CLOSED	The PCM disengages the compressor clutch. Radiator and A/C condenser fan control is based on engine coolant temperature

NOTE: When the A/C system pressure is between the listed ranges, the pressure switches are in a transition state. The switch behavior depends upon whether the pressure is rising or falling.

Fig 1: Identifying High-Low Pressure Switch And Middle Pressure Switch

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Climate Control Door Positions

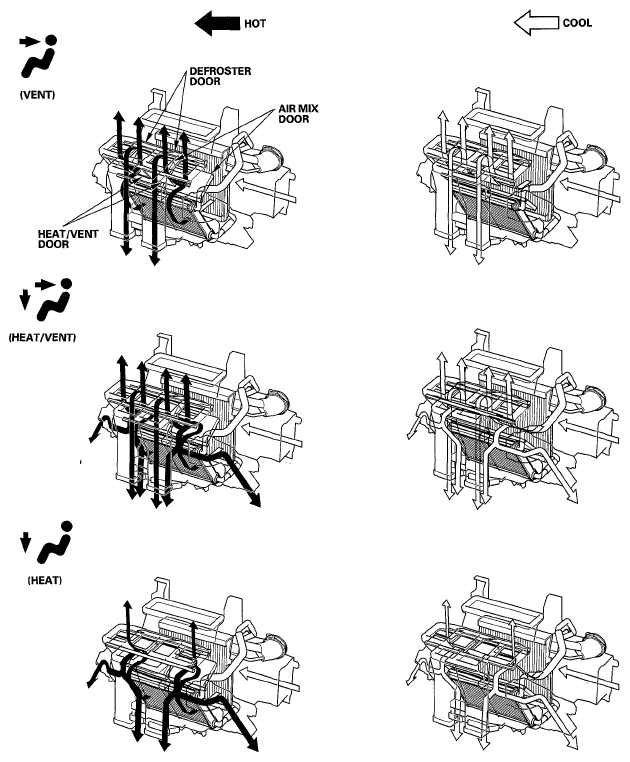

Fig 2: Climate Control Door Positions Air Flow Diagram (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

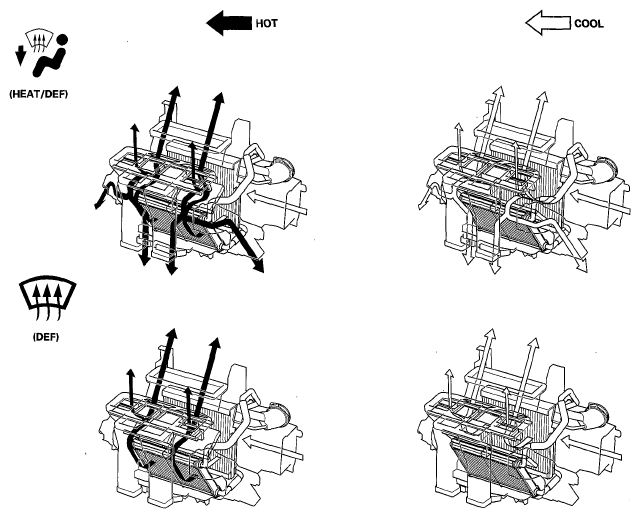

Fig 3: Climate Control Door Positions Air Flow Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
