Front Inner Fender Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body and related parts.
The left side is shown; the right side is similar.

2012 model: Remove the front strake (see Front Strake Replacement ).
Remove the front inner fender (A).
1. -1 Remove the screws (B) from the rear of the front wheel arch, then remove the splash guard (C).
2. -2 From under the front bumper (D), remove the bolts (E) and the screw (F) securing the front bumper and the front inner fender, and remove the clips (G) securing the front inner fender and the front splash shield (H).
3. -3 From the wheel arch, remove the clips (I, J) securing the front inner fender (and the splash shield) to the body.
4. -4 Pull out the front inner fender from the wheel arch.

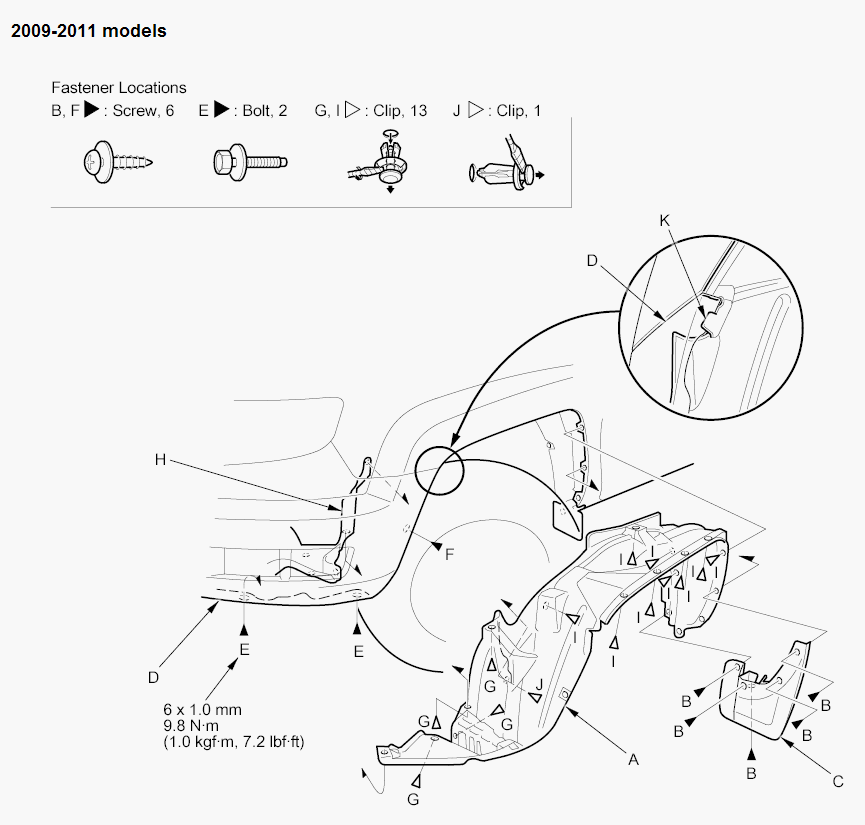

Fig 1: Front Inner Fender Screws, Bolts And Clips With Torque Specifications (2009-2011 Models) (1 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

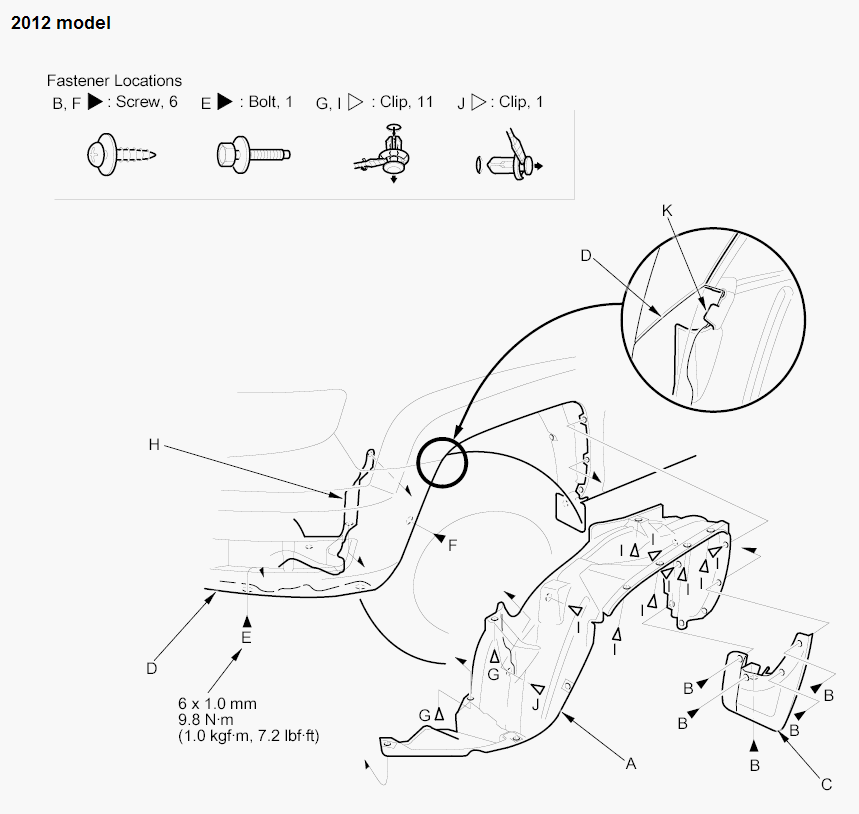

Fig 2: Front Inner Fender Screws, Bolts And Clips With Torque Specifications (2012 Model) (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Install the inner fender in the reverse order of removal, and note these items:
- Make sure to set the tab (K) on the inner fender behind the front bumper.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
2012 model: Install the front strake (see Front Strake Replacement ).
