Tailgate Support Strut Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Use eye protection when prying the support strut clips.
Have an assistant hold the tailgate up while you replace the support struts.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

With the help of an assistant, use a flat-tip screwdriver (A) to pry the support strut clips (B) from each end of the support strut (C) at the tailgate and body, then release the support strut from the pivot bolt (D). Do not remove the clips from the support strut.

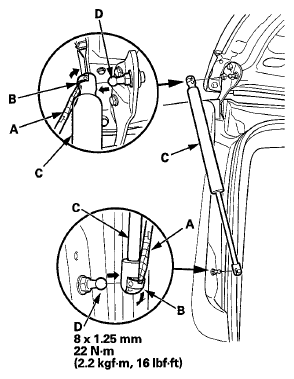

Fig 1: Prying Support Strut Clips With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Set the clips (A) on the original position, then reattach the support strut (B) on the pivot bolt (C) by pushing the support strut onto the pivot.

Fig 2: Pushing Support Strut Onto Pivot

Courtesy of AMERICAN HONDA MOTOR CO., INC.
