Without Navigation

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

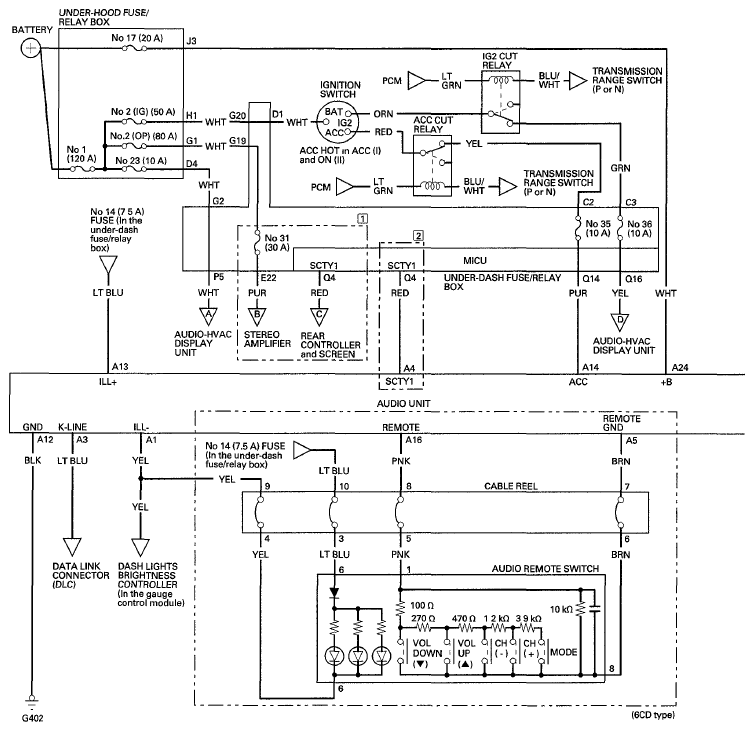

Fig 1: Identifying Audio Unit Circuit Diagram - Without Navigation (1 Of 5)

G05966846

Courtesy of AMERICAN HONDA MOTOR CO., INC.

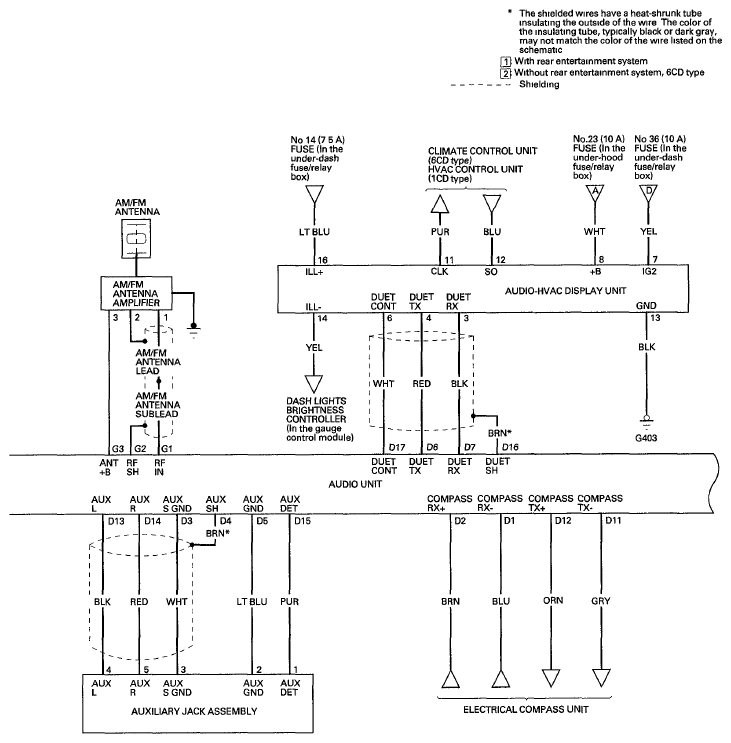

Fig 2: Identifying Audio Unit Circuit Diagram - Without Navigation (2 Of 5)

G05966847

Courtesy of AMERICAN HONDA MOTOR CO., INC.

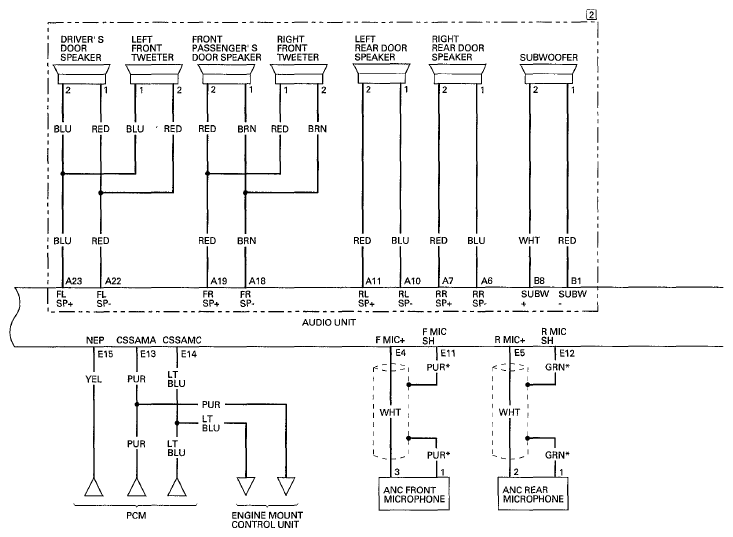

Fig 3: Identifying Audio Unit Circuit Diagram - Without Navigation (3 Of 5)

G05966848

Courtesy of AMERICAN HONDA MOTOR CO., INC.

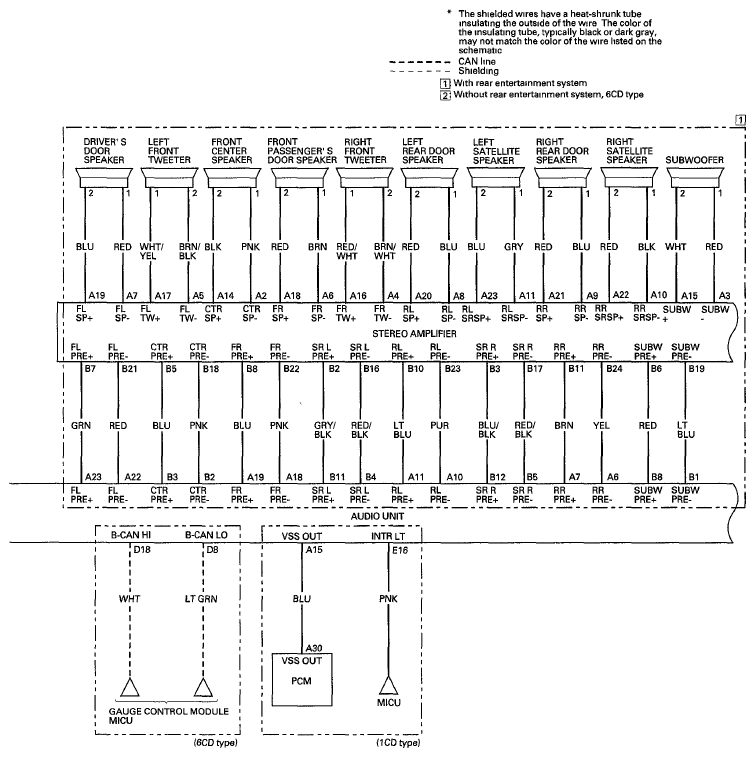

Fig 4: Identifying Audio Unit Circuit Diagram - Without Navigation (4 Of 5)

G05966849

Courtesy of AMERICAN HONDA MOTOR CO., INC.

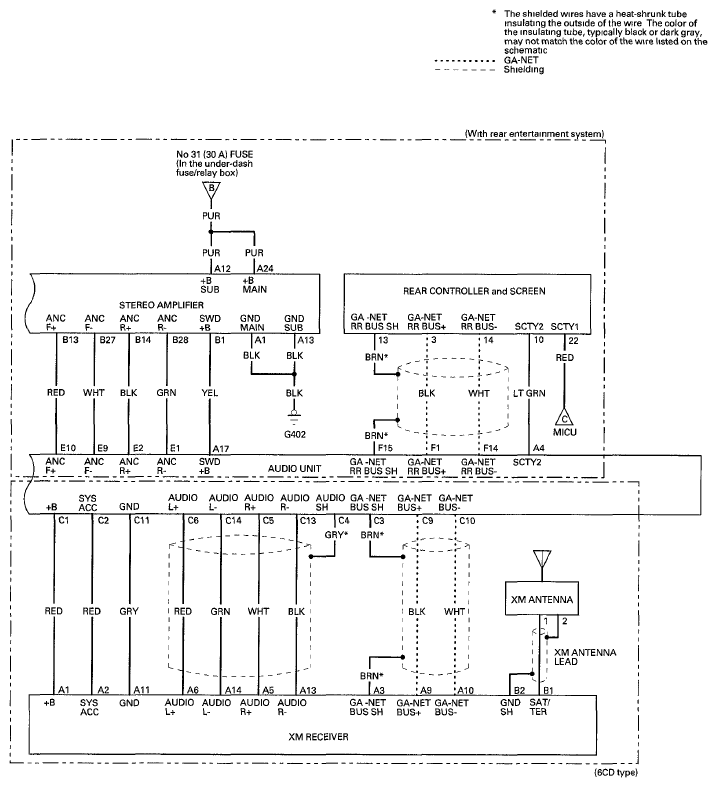

Fig 5: Identifying Audio Unit Circuit Diagram - Without Navigation (5 Of 5)

G05966850

Courtesy of AMERICAN HONDA MOTOR CO., INC.
