Front A/C Line Replacement

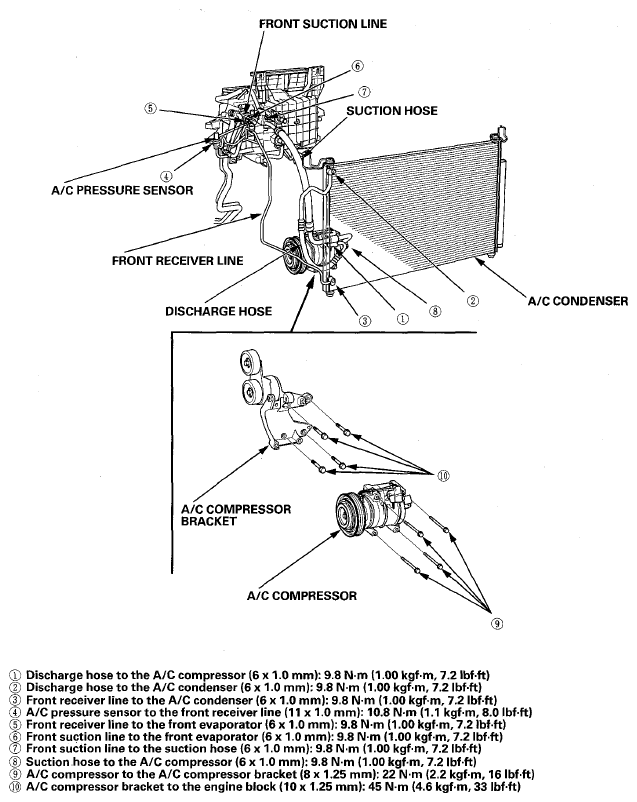

Fig 1: Front A/C Line With Torque Specifications
G08090314Courtesy of AMERICAN HONDA MOTOR CO., INC.
