Component Location Index

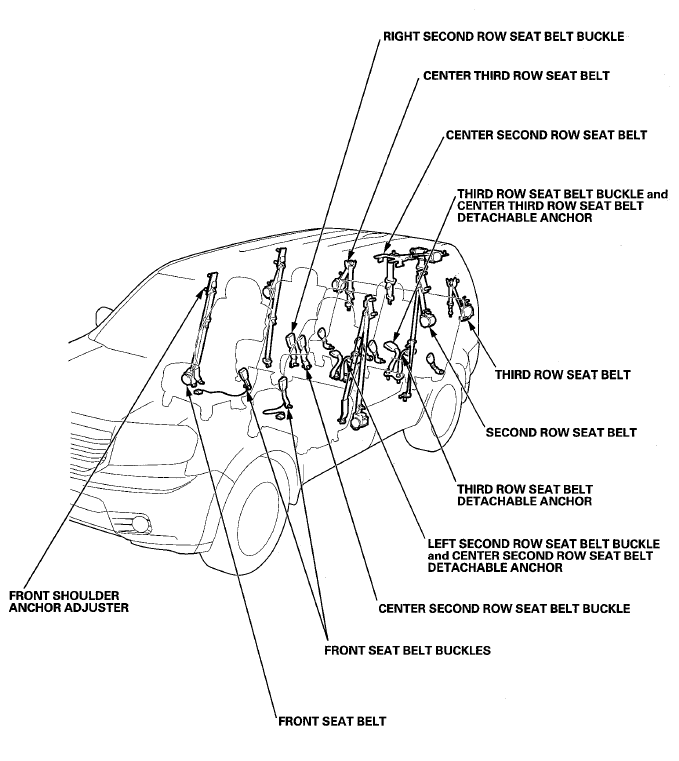

Fig 1: Seat Belts And Related Components Location
G08091356Courtesy of AMERICAN HONDA MOTOR CO., INC.
