Exploded View: Notes

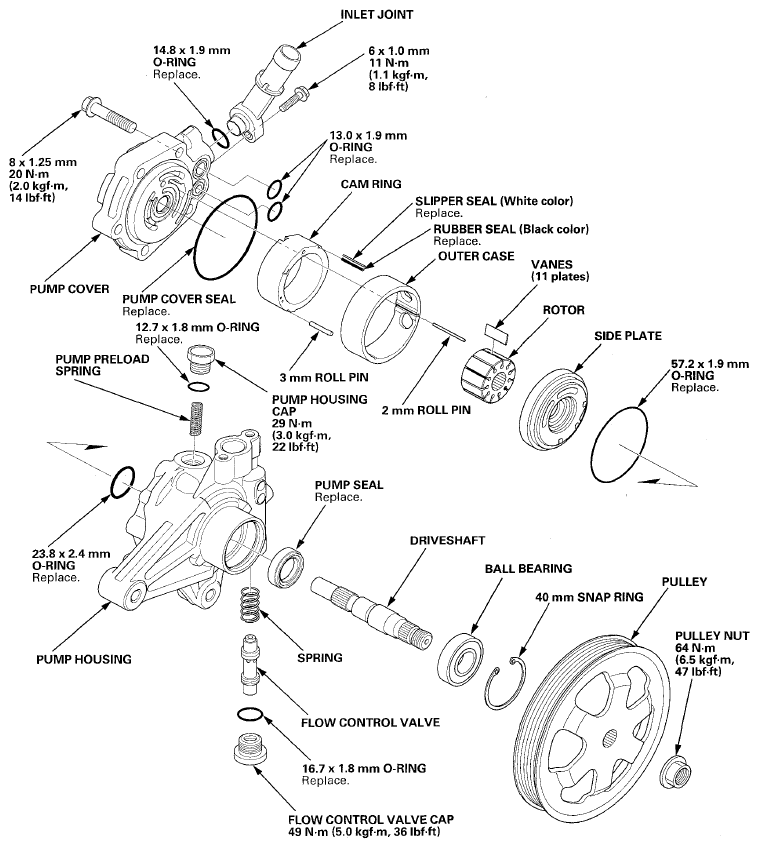

Fig 1: Exploded View Of Hydraulic Power Steering Pump With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

NOTE: Refer to the Fig 1 as needed during the following procedure.
