Exploded View

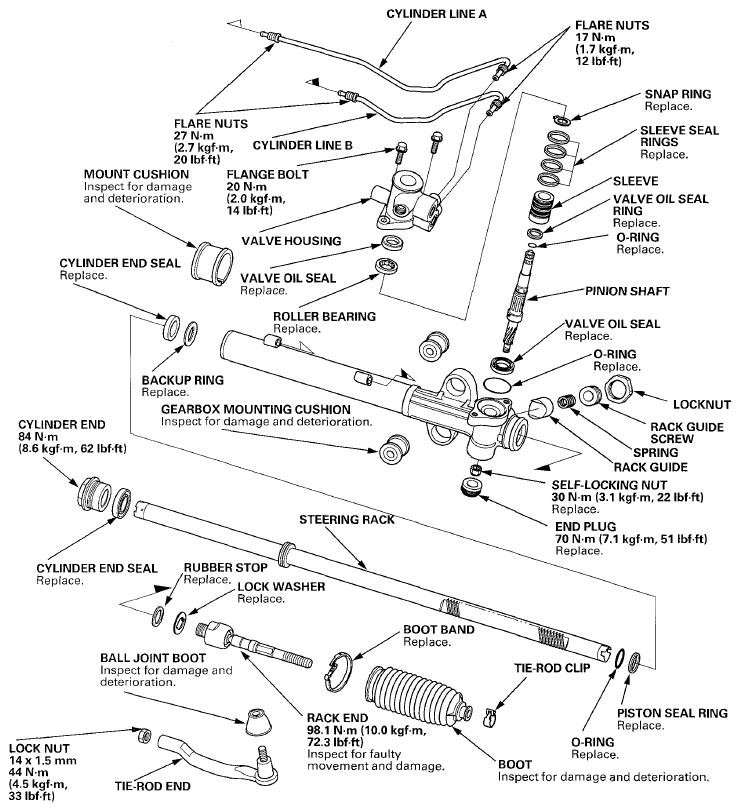

Fig 1: Exploded View Of Steering Gear Box With Torque Specifications

G08088052

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Sizing Tool, 42 07HAG-SF10200 or Piston Seal Ring Sizing Tool 07HAG-SF1020A
Oil Seal Driver, 65 07JAD-PL9A100
Valve Seal Ring Sizing Tool 07NAG-SR3090A
Cylinder End Seal Remover Attachment 07TAF-SZ50100
Sleeve Seal Guide, 35.9 x 37 07YAG-S2X0100
Seal Ring Guide, 22 x 44 07XAG-S0K0200
Sizing Tool, 36 07ZAG-S5A0100
Bearing Driver Attachment, 30 mm I.D. 07746-0030300
Driver Handle, 15 x 135L 07749-0010000
Bearing Driver Attachment, 28 x 30 07946-1870100

NOTE: Refer to the Exploded View as needed during the following procedure.
