Automatic Transmission
›
A/T Interlock System
›
Circuit Diagram
Circuit Diagram

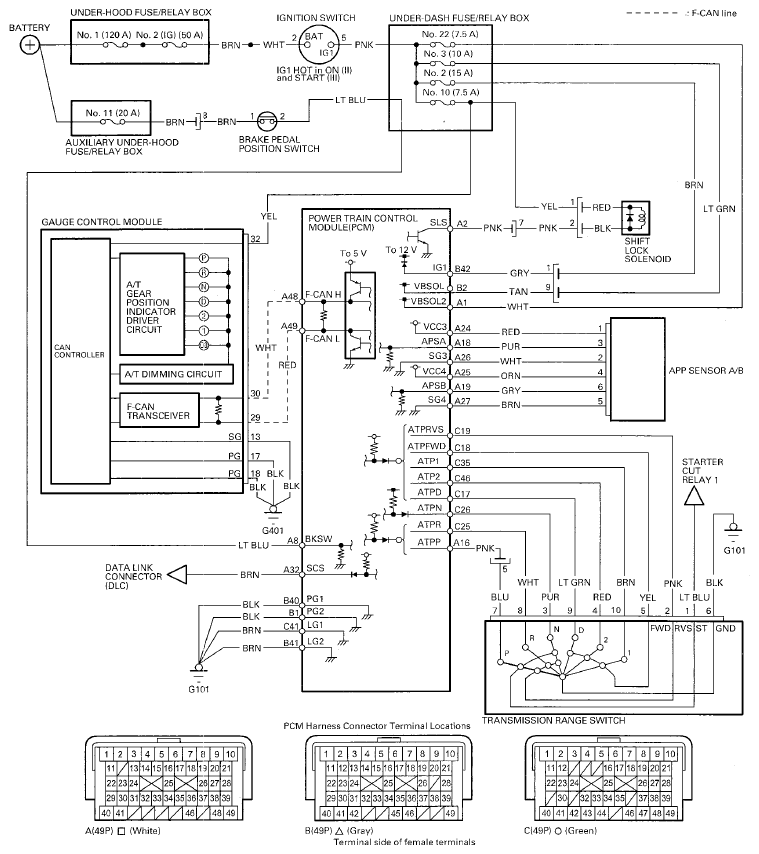

Fig 1: A/T Interlock System Circuit Diagram
