Relay And Control Unit Locations: Door

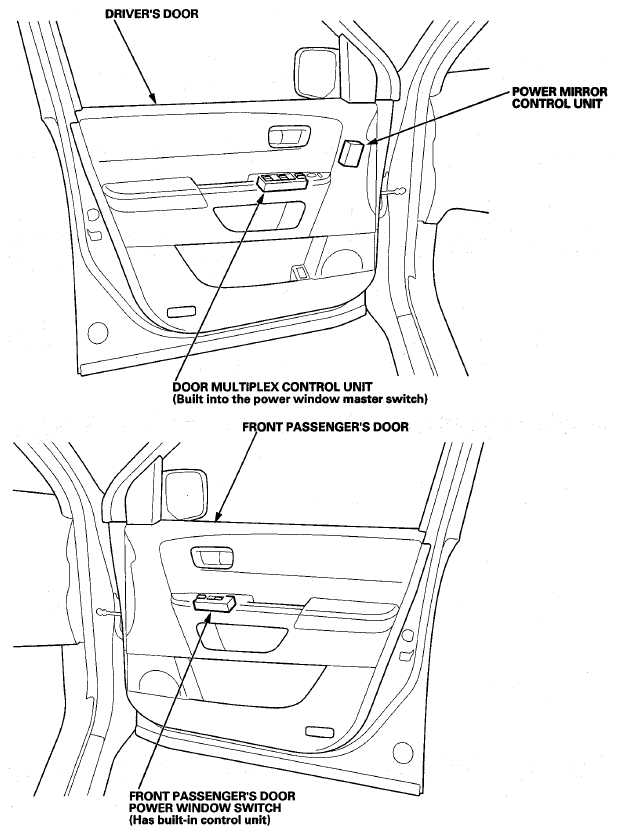

Fig 1: Door Control Unit Locations
G08090555Courtesy of AMERICAN HONDA MOTOR CO., INC.
