EVAP Canister Vent Shut Valve Replacement

Raise the vehicle on a lift.
Remove the EVAP canister cover (see step 2 under EVAP Canister Replacement ).
Disconnect the EVAP canister vent shut valve connector (A).

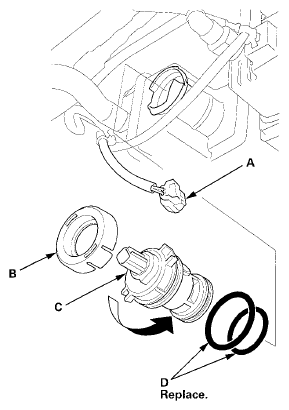

Fig 1: Removing EVAP Canister Vent Shut Valve
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the cap (B).
Remove the EVAP canister vent shut valve (C).
Install the parts in the reverse order of removal with new O-rings (D) and a new cap.
NOTE: Do not coat the O-rings with oil.
