Front Brake Disc Inspection: Runout

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
  2. Remove the front wheels.
  3. Remove the brake pads (see FRONT BRAKE PAD INSPECTION AND REPLACEMENT ).
  4. Inspect the brake disc surface for damage and cracks. Clean the brake disc thoroughly, and remove all rust.
  5. Install suitable flat washers (A) and wheel nuts (B), and tighten the nuts to the specified torque to hold the brake disc securely against the hub.

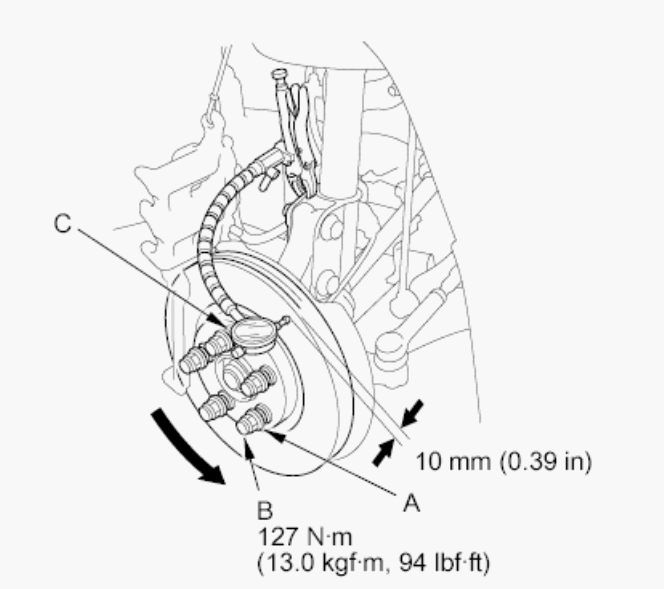

    Fig 1: Setting Dial Gauge Brake Disc With Torque Specifications
    G00510915Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Set up the dial gauge (C) against the brake disc as shown, and measure the runout at 10 mm (0.39 in) from the outer edge of the brake disc.

    Brake disc runout:

    Service limit: 0.04 mm (0.0016 in.)

  7. If the brake disc is beyond the service limit, refinish the brake disc with a commercially available on-car brake lathe.

    Max. refinish limit: 26.0 mm (1.024 in.)

    NOTE:
    • If the brake disc is beyond the service limit for refinishing, replace it (see FRONT BRAKE DISC REPLACEMENT ).
    • If the brake disc is replaced with a new one, check the new disc for runout. If the new disc is out of specification, refinish the disc.
  8. Install the brake pads (see REPLACEMENT ).
  9. Clean the mating surface of the brake disc and the inside of the wheel, then install the front wheels.
