Shift Lever Installation

Connect the shift lock solenoid connector (A) and the D3 switch/park pin switch/A/T gear position indicator panel light connector (B).

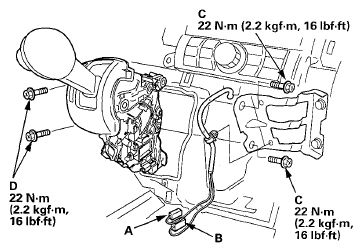

Fig 1: Shift Lock Solenoid Connector And A/T Gear Position Indicator Panel Light Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Attach the shift lever to the right shift lever mounting bracket with two bolts (C), and the left shift lever mounting bracket with two bolts (D).
Install the shift cable on the shift lever, and adjust the shift cable (see SHIFT CABLE ADJUSTMENT ).
