Driver's Seat without DPMS

NOTE:

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.
Refer to power seat adjustment switch test/replacement (see POWER SEAT ADJUSTMENT SWITCH TEST/REPLACEMENT ) for driver's seat with DPMS.

Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Remove the power seat adjustment switch knobs (A) and recline cover from the driver's seat (see FRONT SEAT RECLINE COVER REMOVAL/INSTALLATION ), then remove the two screws and the power seat adjustment switch (B).

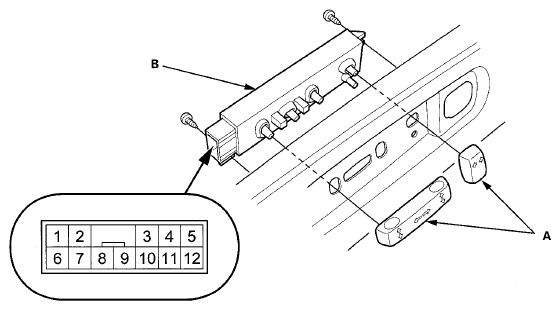

Fig 1: Identifying Power Seat Adjustment Switch And Knobs
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 12P connector from the power seat adjustment switch.
Reinstall the adjustment switch knobs to the switch.
Check for continuity between the terminals in each switch position according to the table.

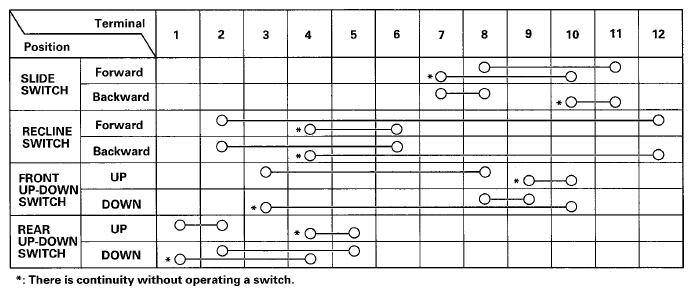

Fig 2: Continuity Between Terminals In Switch Position According To Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
