Windshield Wiper Motor Replacement: Removal

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood. Remove the nuts (A) and the windshield wiper arms (B).
    Fig 1: Windshield Wiper Arms & Nut With Torque Specifications
    G05966430Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the cowl covers (see COWL COVER REPLACEMENT ).
  3. Disconnect the 5P connector (A) from the wiper motor.

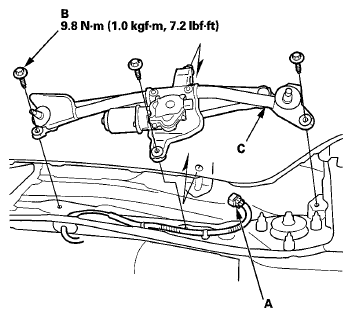

    Fig 2: Wiper Linkage Assembly With Torque Specifications
    G05966431Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the three bolts (B) and the wiper linkage assembly (C).
  5. Separate the linkage (A) from the link (B).

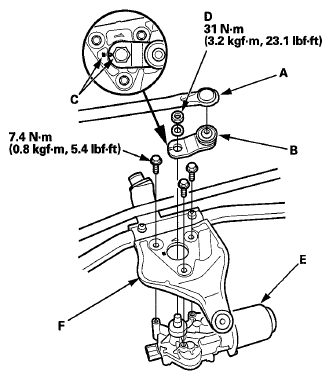

    Fig 3: View Of Linkage Separating From Link With Torque Specifications
    G05966432Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Note the position (C), then remove the nut (D) and the link from the wiper motor (E).
  7. Remove the three bolts, and separate the wiper motor from the linkage (F).
