Automatic Transmission
›
Automatic Transmission
›
Component Location Index
Component Location Index

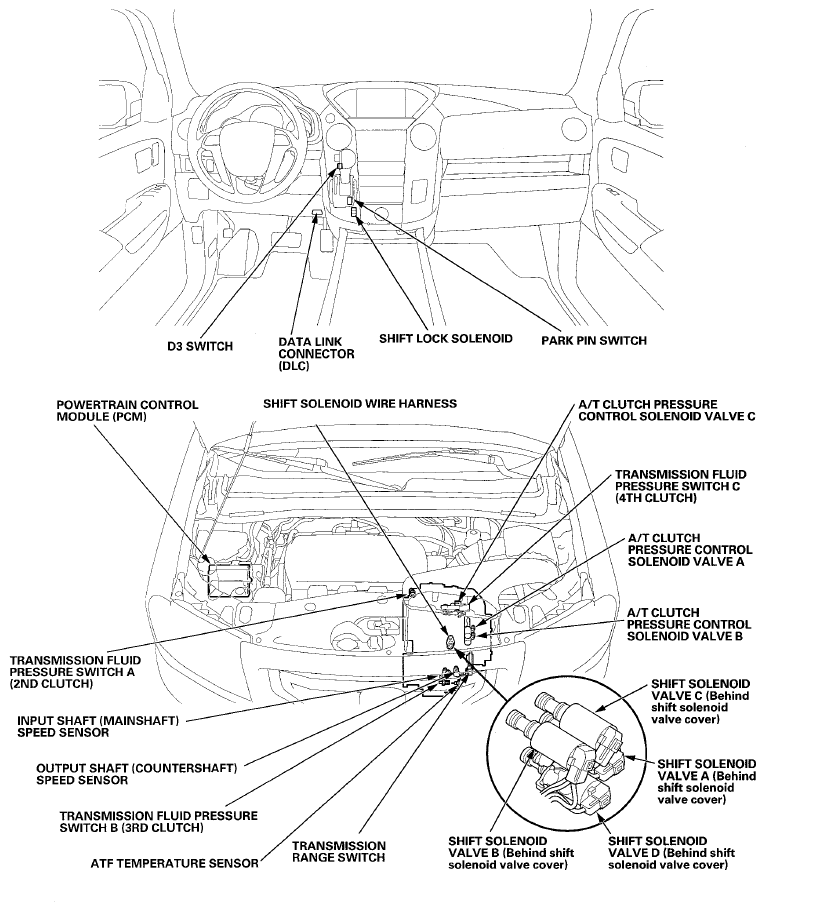

Fig 1: Automatic Transmission Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
