Pressure Test

Special Tools Required

• A/T Pressure Test Hose 07AAJ-PY4A100
• A/T Pressure Adapter 07MAJ-PY40120
• A/T Oil Pressure Gauge Set 07406-0020400 or 07406-0020401

1. Make sure the transmission fluid is filled to the proper level (see ATF LEVEL CHECK  ).
2. 4WD: Raise the vehicle on a lift, make sure it is securely supported, and allow all four wheels to rotate freely.

   2WD: Block the rear wheels and raise the front of the vehicle, make sure it is securely supported, and allow the front wheels to rotate freely, raise the vehicle on a lift.

3. Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
4. Remove the damper from the front subframe.
   Fig 1: Front Subframe Damper With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Connect the HDS to the DLC (A) located under the driver's side of the dashboard.
   Fig 2: Identifying Data Link Connector (DLC)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Turn the ignition switch to ON (II). Make sure the HDS communicates with the PCM, and go to the A/T Data List. If it does not, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
7. Connect the A/T oil pressure gauge to the line pressure inspection port (A), the 3rd clutch pressure port (B), and the 5th clutch pressure port (C). Do not allow dust or other foreign particles to enter the hole while connecting the A/T oil pressure gauge.
   Fig 3: Identifying A/T Oil Pressure Gauge Set, Pressure Test Hose And A/T Pressure Adapter

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
   Fig 4: Identifying Line Pressure Inspection Port, 3rd Clutch Pressure Port And 5th Clutch Pressure Port

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Start the engine, and warm it up to normal operating temperature (the radiator fan comes on).
9. Measure the line pressure while holding the engine speed at 2, 000 rpm with the shift lever in P or N.
   NOTE: Higher pressures may be noticed if measurements are taken with the shift lever in any position other than P or N.

   Pressure	Fluid Pressure
   	Standard	Service Limit
   Line (A)	951-1, 010 kPa (9.7-10.3 kgf/cm2 , 138-146 psi)	902 kPa (9.2 kgf/cm2 , 131 psi)

10. Shift to D, and select the D3 driving mode by pressing the D3. Release the brake pedal; the transmission is in 1st gear.
11. Press the accelerator pedal to increase the engine speed to 2, 500 rpm; the transmission shifts into 2nd gear.
12. Release the accelerator pedal; the engine speed decreases to 1, 000 rpm with the transmission in 2nd gear.
13. Press the accelerator pedal very slowly so that the engine speed increases to 2, 000 rpm on 5 seconds, then hold the accelerator; the transmission shifts into 3rd gear. Measure the 3rd clutch pressure while holding the engine speed at 2, 000 rpm.
14. Release the D3 driving mode by pressing the D3 button; the transmission shifts into 5th gear. Measure the 5th clutch pressure while holding the engine speed at 2, 000 rpm.

    Pressure	Fluid Pressure
    	Standard	Service Limit
    3rd clutch (B) 5th clutch (C)	941-1, 020 kPa (9.6-10.4 kgf/cm2 , 137-148 psi)	892 kPa (9.1 kgf/cm2 , 129 psi)

15. Bring the engine back to an idle, then apply the brake pedal to stop the wheels from rotating.
16. Shift to R, then release the brake pedal. Measure the 5th clutch pressure while holding the engine speed at 2, 000 rpm.

    Pressure	Fluid Pressure
    	Standard	Service Limit
    5th clutch (C) in R	941-1, 020 kPa (9.6-10.4 kgf/cm2 , 137-148 psi)	892 kPa (9.1 kgf/cm2 , 129 psi)

17. Turn the engine off, then disconnect the A/T oil pressure gauge from the line, 3rd clutch, and 5th clutch pressure inspection ports.
18. Install the sealing bolts in the line, 3rd clutch, and 5th clutch pressure inspection ports with new sealing washers, and tighten the bolts to 18 N.m (1.8 kgf.m, 13 lbf.ft). Do not reuse the old sealing washers.
19. Connect the A/Toil pressure gauge to the 1st clutch pressure inspection port (D) and the 1st-hold clutch pressure inspection port (E).
    Fig 5: Identifying 1st Clutch Pressure Inspection Port And 1st-Hold Clutch Pressure Inspection Port

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
20. Start the engine, and shift to 1.
21. Measure the 1st clutch pressure and the 1st-hold clutch pressure while holding the engine speed at 2, 000 rpm.

    Pressure	Fluid Pressure
    	Standard	Service Limit
    1st clutch (D)	941-1, 020 kPa (9.6-10.4 kgf/cm2 , 137-148 psi)	892 kPa (9.1 kgf/cm2 , 129 psi)
    1st-hold clutch (E)	677-755 kPa (6.9-7.7 kgf/cm2 , 98-110 psi)	628 kPa (6.4 kgf/cm2 , 91 psi)

22. Turn the engine off, then disconnect the A/T oil pressure gauge from the 1st clutch pressure and 1st-hold clutch pressure inspection ports.
23. Install the sealing bolts in the 1st clutch pressure and 1st-hold clutch pressure inspection ports with new sealing washers, and tighten the bolts to 18 N.m (1.8 kgf.m, 13 lbf.ft). Do not reuse the old sealing washers.
24. Remove the air cleaner assembly and the intake air duct.
25. Disconnect the A/T clutch pressure control solenoid valve C connector (A).

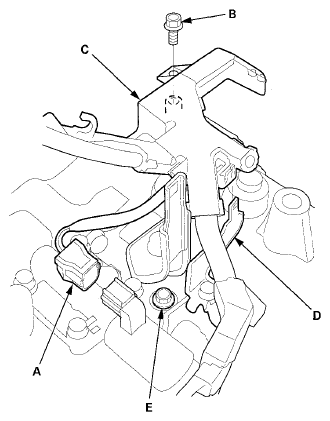

    Fig 6: Identifying A/T Clutch Pressure Control Solenoid Valve Connector, Cover Mounting Bolt, Harness Cover And Bracket

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
26. Remove the harness cover mounting bolt (B), and remove the harness cover (C) from its bracket (D).
27. Connect the A/T oil pressure gauge to the 4th clutch pressure inspection port (E).
28. Connect the A/T clutch pressure control solenoid valve C connector.
29. Connect the A/T oil pressure gauge to the 2nd clutch pressure inspection port (F), then temporarily install the air cleaner assembly and the intake air duct.
    Fig 7: Identifying 2nd Clutch Pressure Inspection Port

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
30. Start the engine, then shift to 1.
31. Press the accelerator pedal to increase the engine speed to 2, 500 rpm; the transmission shifts into 2nd gear.
32. Measure the 2nd clutch pressure while holding the engine speed at 2, 000 rpm.

    Pressure	Fluid Pressure
    	Standard	Service Limit
    4th clutch (E) 2nd clutch (F)	941-1, 020 kPa (9.6-10.4 kgf/cm2 , 137-148 psi)	892 kPa (9.1 kgf/cm2 , 129 psi)

33. Shift to D, then measure the 4th clutch pressure while holding the engine speed at 2, 000 rpm.
34. Turn the engine off, remove the air cleaner assembly and the intake air duct, and disconnect the A/T clutch pressure control solenoid valve C connector. Then disconnect the A/T oil pressure gauge from the 2nd clutch pressure and 4th clutch pressure inspection port.
35. Install the sealing bolt to the 2nd clutch pressure and 4th clutch pressure inspection ports with a new sealing washer, and tighten the bolt to 18 N.m (1.8 kgf.m, 13 lbf.ft). Do not reuse the old sealing washer.

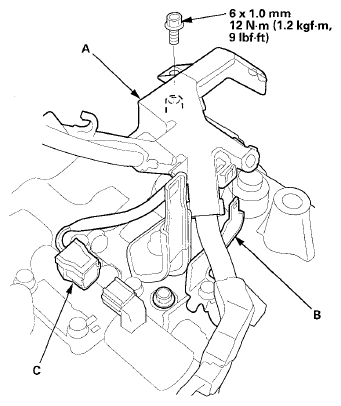

36. Install the harness cover (A) on its bracket (B), and secure it with the harness cover mounting bolt.
    Fig 8: Harness Cover, Bracket And Harness Cover Mounting Bolt With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
37. Connect the A/T clutch pressure control solenoid valve C connector (C).
38. If any of the pressures are out of the service limit, refer to the problems and probable causes listed in the table.

    Problem	Probable causes
    No or low line pressure	Torque converter ATF pump Regulator valve Torque converter check valve Clogged ATF strainer
    No or low 1st clutch pressure	1st clutch O-rings
    No or low 2nd clutch pressure	2nd clutch O-rings
    No or low 3rd clutch pressure	3rd clutch O-rings
    No or low 4th clutch pressure	4th clutch O-rings
    No or low 5th clutch pressure	5th clutch O-rings
    No or low 5th clutch pressure in R	Servo valve 5th clutch O-rings
    No or low 1st-hold clutch pressure	1st-hold clutch O-rings

39. Install the air cleaner assembly and the intake air duct.
40. Install the damper on the front subframe.
41. Install the splash shield (see SPLASH SHIELD REPLACEMENT ).
42. Check the ATF level (see ATF LEVEL CHECK  ).
