Front Seat Frame Replacement

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

Check the operation of the driver's seat position sensor after any of these actions (see DRIVER'S SEAT POSITION SENSOR OPERATION CHECK ):
- Driver's seat position sensor replacement
- Cover plate (front side of driver's seat slide rail) replacement
Do the front passenger's weight sensor initialization (see FRONT PASSENGER'S WEIGHT SENSOR INITIALIZATION ) after front passenger's seat frame replacement.

NOTE:

Put on gloves to protect your hands.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
Apply oil to the pivot areas of the slide locks.
Apply multipurpose grease to the sliding areas of the seat tracks.
If the side airbag has deployed, replace the seat frame and related parts with new ones (see COMPONENT REPLACEMENT/INSPECTION ).

Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Remove these items:
- Front seat-back cover/pad (see FRONT SEAT-BACK COVER REPLACEMENT )
- Front seat cushion cover/pad (see FRONT SEAT CUSHION COVER REPLACEMENT )
- Front seat belt buckle (see FRONT SEAT BELT BUCKLE )
- Front seat recline motor (see FRONT SEAT RECLINE MOTOR REPLACEMENT )
- Front seat slide motor (see FRONT SEAT SLIDE MOTOR REPLACEMENT )
Detach the clip and release the hook (A), then remove the outer height cover (B).

Fig 1: Identifying Outer Height Cover And Hook
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Driver's seat: Detach the clips (A, B), then remove the inner height cover (C).
8-way power seat

Fig 2: Identifying Clips And Inner Height Cover (8-Way Power Seat)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Manual height adjustable seat

Fig 3: Identifying Clips And Inner Height Cover (Manual Height Adjustable Seat)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Gently pull out the rear outer foot cover (A) to release the hook (B) and the clips, then remove it.

Fig 4: Identifying Rear Outer Foot Cover And Hook
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Gently pull out the rear area of the front outer foot cover (A) to detach the clip and release the hooks (B), then remove it.

Fig 5: Removing Front Outer Foot Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the hooks (A), then remove the front inner foot cover (B).

Fig 6: Removing Front Inner Foot Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the hooks (A) and the clip, then remove the rear inner foot cover (B).

Fig 7: Releasing Hooks And Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.

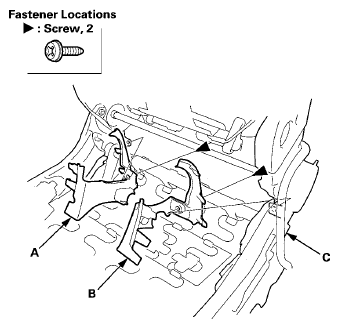

Remove the screws, then remove the rear recline inner cover (A) and the rear recline outer cover (B) from the seat frame (C).

Fig 8: Identifying Seat Frame, Rear Recline Inner And Outer Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the seat components on the new seat frame in the reverse order of removal, and note these items:
- Make sure the ODS unit and motor connectors are plugged in properly.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
