CR-Z Base, Standard Trans
›
Repair and Diagnosis
›
Engine Mechanical
›
Cooling Fan
›
Fan Controls
›
Circuit Diagram
Circuit Diagram

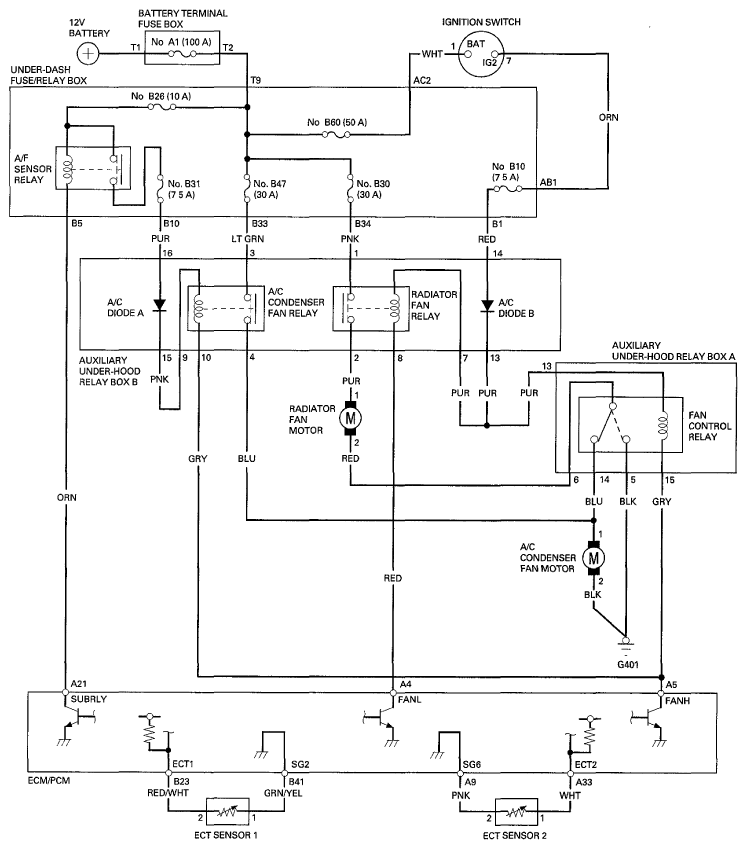

Fig 1: Fan Control System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
