Engine Oil Pump Removal and Installation: Removal

  1. Under-Cowl Panel - Remove
  2. Wiper Motor - Remove
  3. Engine Undercover - Remove
  4. Cam Chain - Remove
  5. Universal Lifting Eyelet - Install
    GHH81269Courtesy of HONDA, U.S.A., INC.
  6. Engine Support Hanger - Install

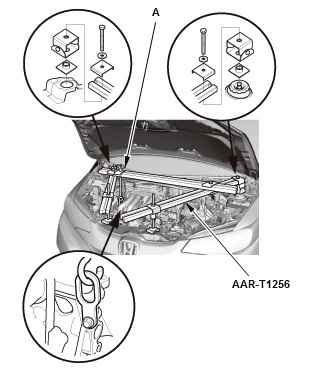

    GHH81270Courtesy of HONDA, U.S.A., INC.
    		 1. Install the engine support hanger (AAR-T1256) onto the vehicle as shown, and attach the hook to the slotted hole in the universal lifting eyelet. Tighten the wing nut (A) by hand, and lift and support the engine/transmission.
  7. Oil Pan - Remove
  8. Oil Pump - Remove

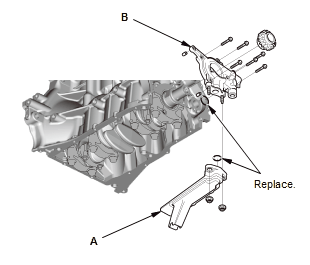

    GHH81271Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the oil strainer (A)

    2. Remove the oil pump (B).
