CD Player Unit Connector for Inputs and Outputs
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
| Connector Index |
|---|
| CD Player Unit Connector A (12P) |
| CD Player Unit Connector B (2P) |
| CD Player Unit Connector C (2P) |

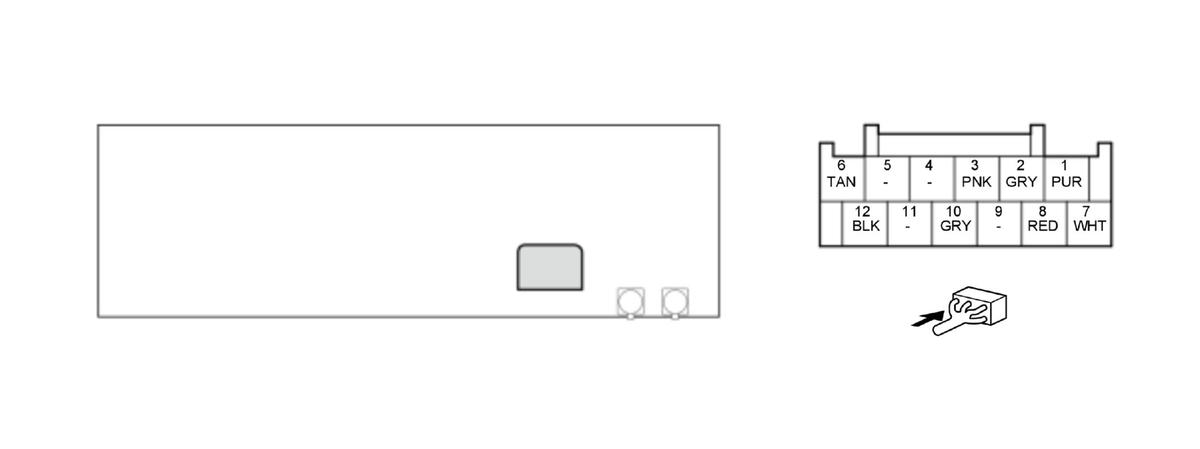

CD Player Unit Connector A (12P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| A1 | MOST ECL 2 | Inputs ECL signal |
| A2 | ILLUMI+ | Detects illumination on signal |
| A3 | SCTY IN | Security signal |
| A4 | Not used | --- |
| A5 | Not used | --- |
| A6 | +B RADIO | Continuous power source |
| A7 | MOST ECL 1 | Outputs ECL signal |
| A8 | ILL-(LED) | Inputs illumination control signal |
| A9 | Not used | --- |
| A10 | SCTY 02 | Security signal |
| A11 | Not used | --- |
| A12 | GND | Ground for CD player unit (G406) |

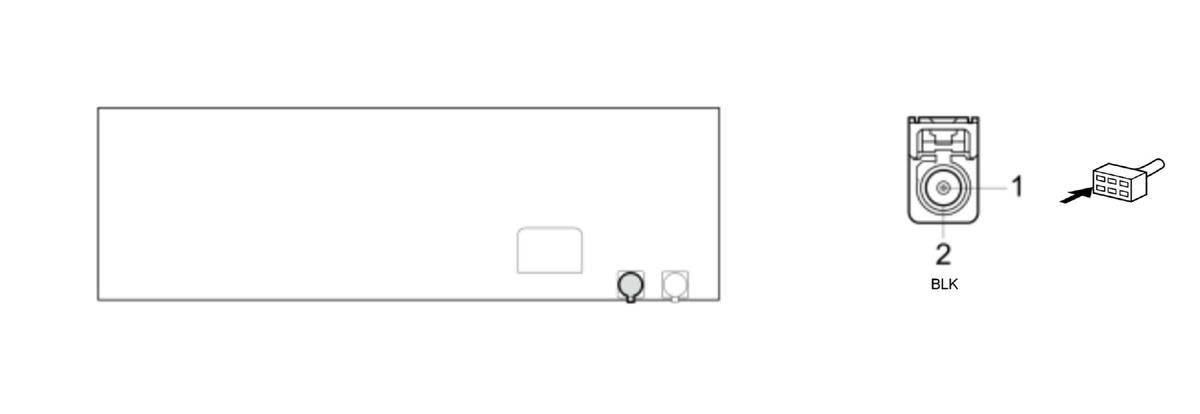

CD Player Unit Connector B (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| B1 | MOST TX+ | Outputs MOST communication signal |
| B2 | MOST TX- | Shield for terminal No. 1 |

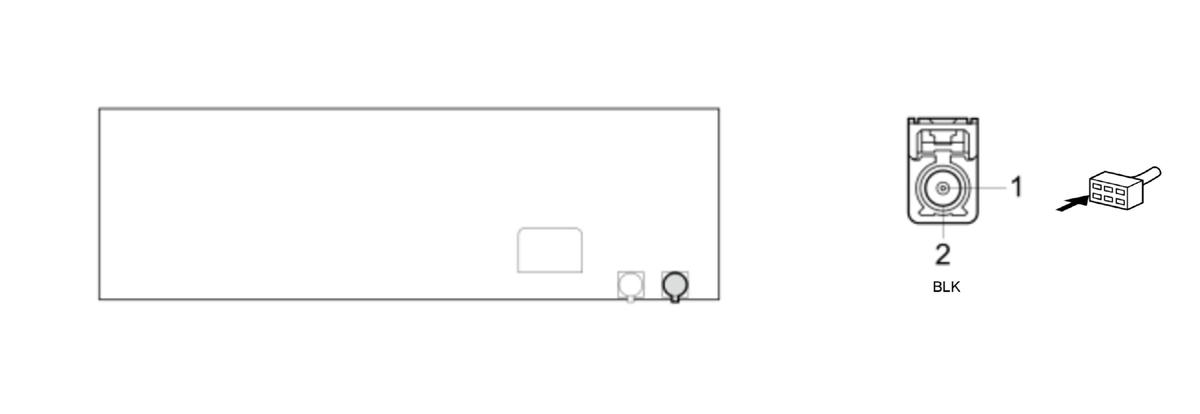

CD Player Unit Connector C (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| C1 | MOST RX+ | Inputs MOST communication signal |
| C2 | MOST RX- | Shield for terminal No. 1 |
