FixVault
Home
›
Honda
›
2015
›
Pilot EX, FWD
›
Repair and Diagnosis
›
Accessories & Equipment
›
Entertainment Systems
›
Audio System
›
Component Location Index
›
Without Navigation
Without Navigation

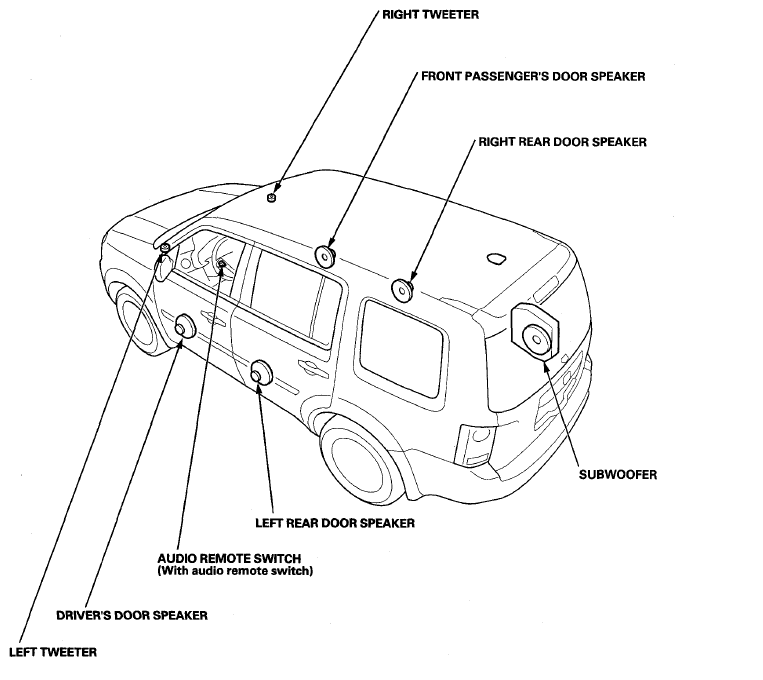

Fig 1: Identifying Audio System Components Location - Without Navigation (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

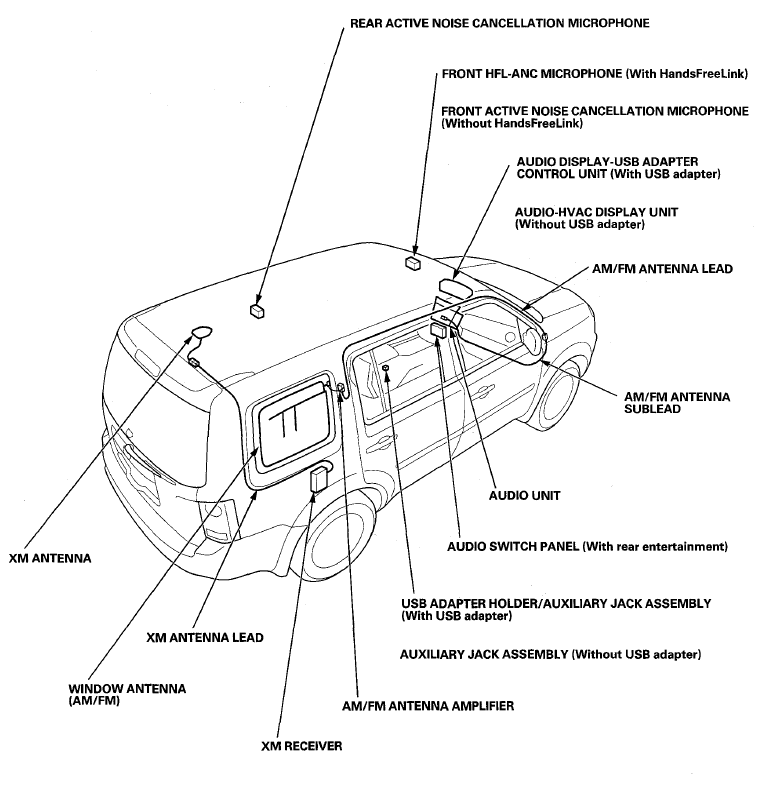

Fig 2: Identifying Audio System Components Location - Without Navigation (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
