Relay And Control Unit Locations: Dashboard: Notes

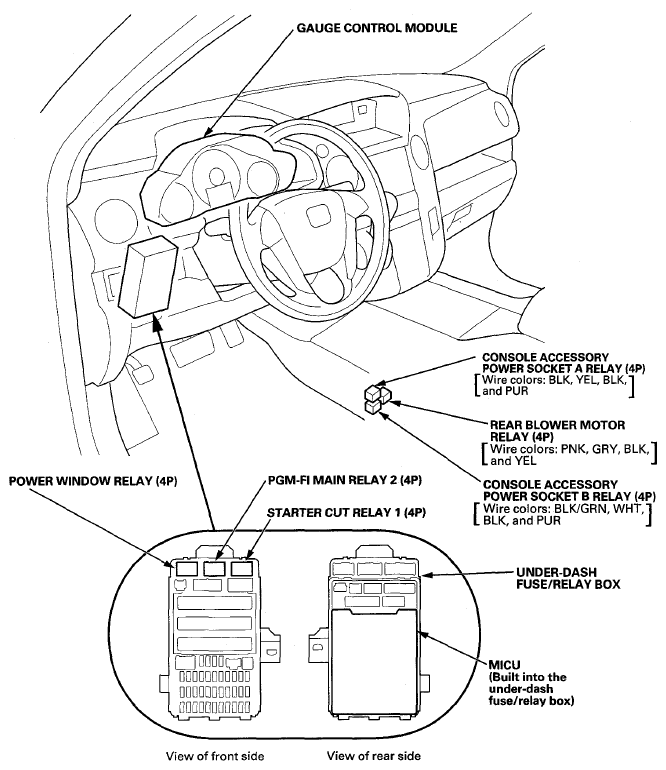

Fig 1: Dashboard Relay And Control Unit Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
