Electrical Compass System
›
Circuit Diagram
›
With USB adapter
With USB adapter

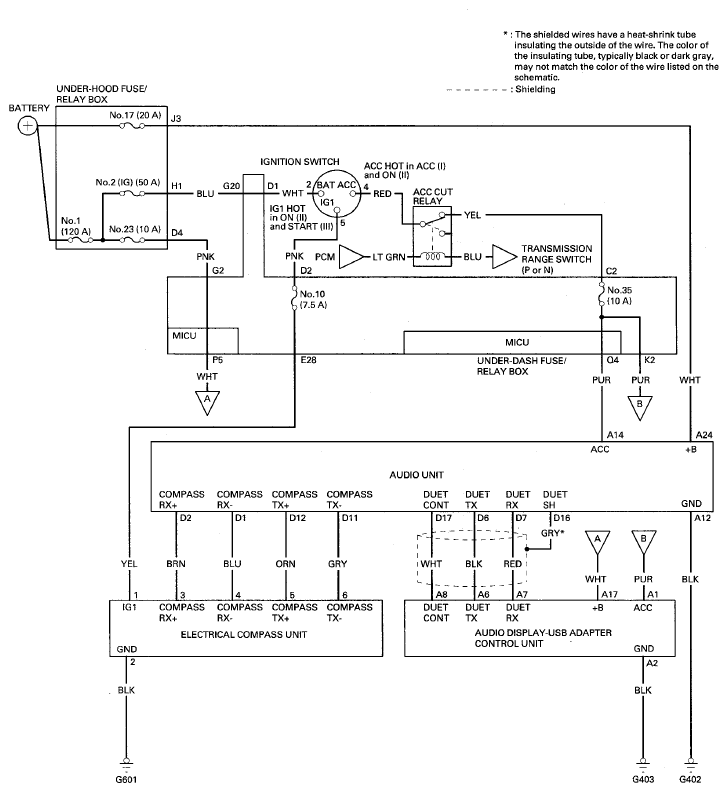

Fig 1: Electrical Compass (With USB Adapter) - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
