Washer Motor Test
WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
- Open the hood.

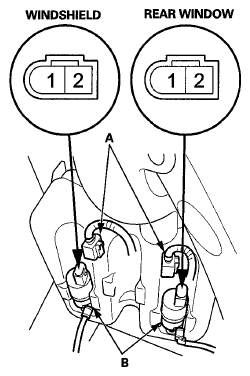

- Disconnect the 2P connectors (A) from the washer motors (B).
- Test the motor by connecting battery power to terminal No. 2 and ground terminal No. 1 of the washer motor. The motor should run.
- If the motor does not run or fails to run smoothly, replace it.
- If the motor runs smoothly, but little or no washer fluid is pumped, check for a disconnected or blocked washer hose, or a clogged washer motor outlet.
