Washer Tube Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove the washer nozzles and clips, then remove the washer tubes.

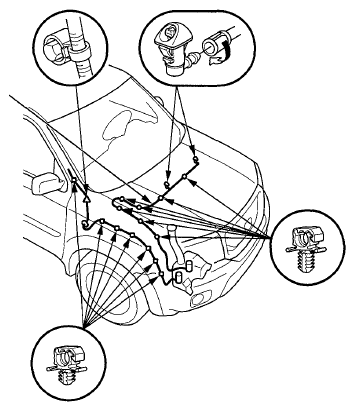

Fig 1: Identifying Washer Nozzles & Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

With rear entertainment system

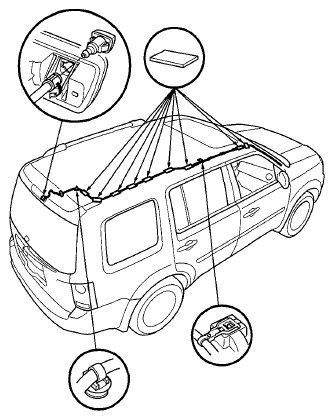

Fig 2: Identifying Washer Nozzles & Clips (With Rear Entertainment System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Washer Tube Replacement (cont'd)

With moonroof

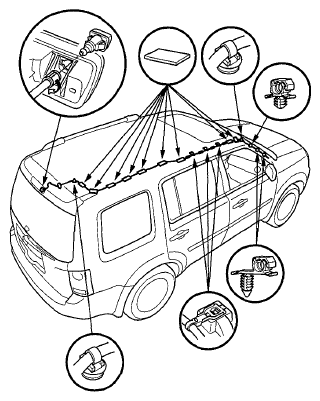

Fig 3: Identifying Washer Nozzles & Clips (With Moonroof)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Without moonroof

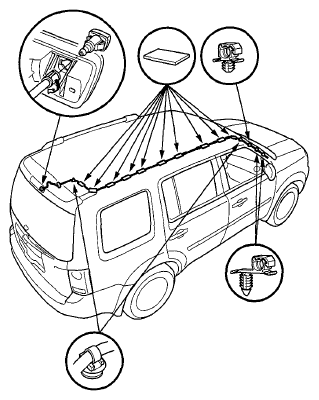

Fig 4: Identifying Washer Nozzles & Clips (Without Moonroof)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal. Take care not to pinch the washer tubes. Check the washer operation.
