Column Cover Removal/Installation

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch or damage the column covers.
Do not pry on the cover surfaces with any tools.

Adjust the steering column so that it is fully tilted down and fully extended.
Turn the steering wheel to a position where the column cover screws can be seen, then remove the screws from the front side of the column cover (A).

Fig 1: Identifying Steering Column Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the hooks (A), then remove the upper column cover (B).

Fig 2: Identifying Steering Upper Column Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

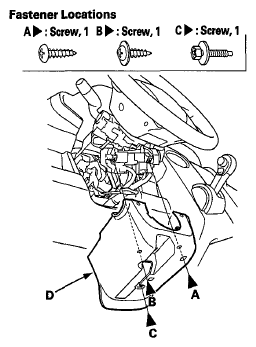

Remove the three screws (A, B, C), then remove the lower column cover (D).

Fig 3: Identifying Steering Lower Column Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the upper and lower column cover in the reverse order of removal, and note these items:
- Push the hooks and tabs into place securely.
- Before tightening the screws, make sure the wire harnesses are not pinched.
