Honda
›
2015
›
Pilot LX, FWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
Relay And Control Unit Locations
›
Dashboard
›
Without navigation
Without navigation

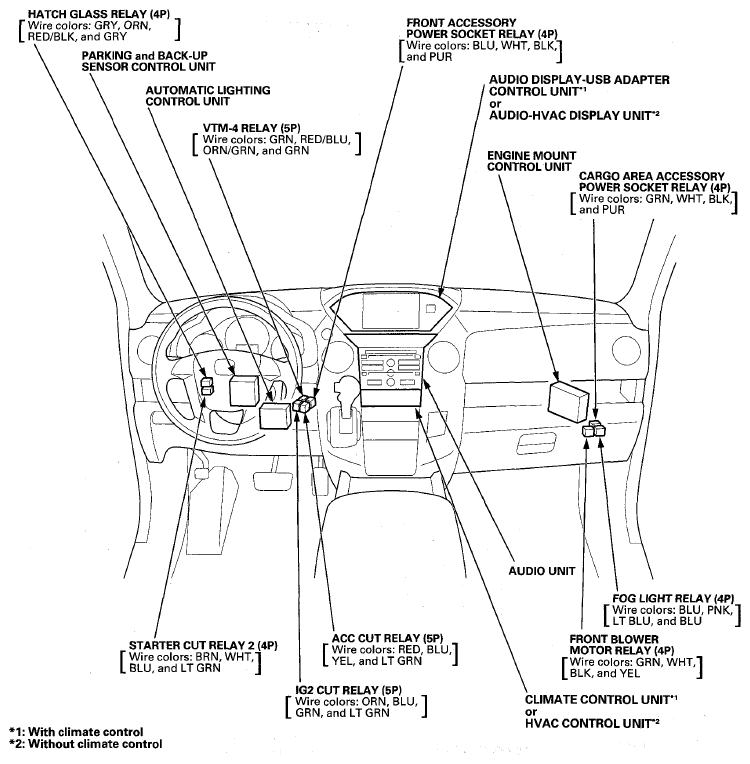

Fig 1: Dashboard Relay And Control Unit Locations (Without Navigation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

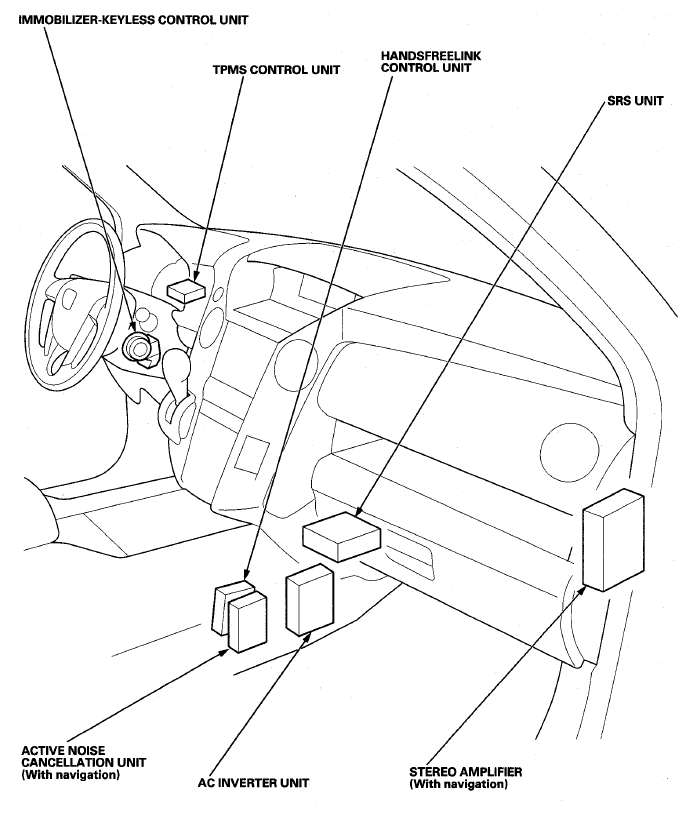

Fig 2: Dashboard Control Unit Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
