Exploded View

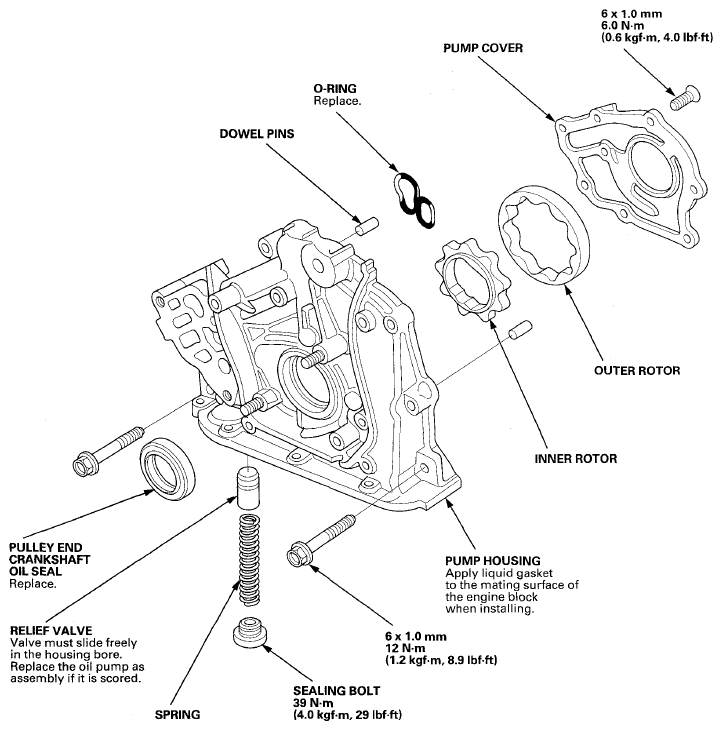

Fig 1: Exploded View Of Oil Pump With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Engine Support Hanger, A and Reds AAR-T1256*
• Oil Seal Driver, 64 mm 070AD-RCAA100

*Available through the Honda Tool and Equipment Program 888-424-6857
