Front Bank (Bank2)
Front Bank (Bank2)

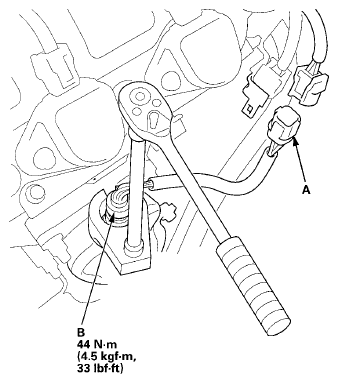

Disconnect the front A/F sensor 6P connector (A), then remove the A/F sensor (B).
Fig 1: Removing A/F Sensor Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
