Function Diagram

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

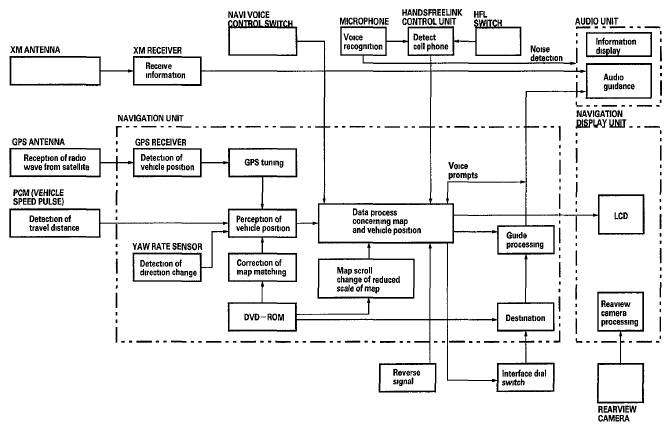

Fig 1: Identifying Navigation System - Function Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
