Keyless Access System Component Location Index

GHH51459

Courtesy of HONDA, U.S.A., INC.

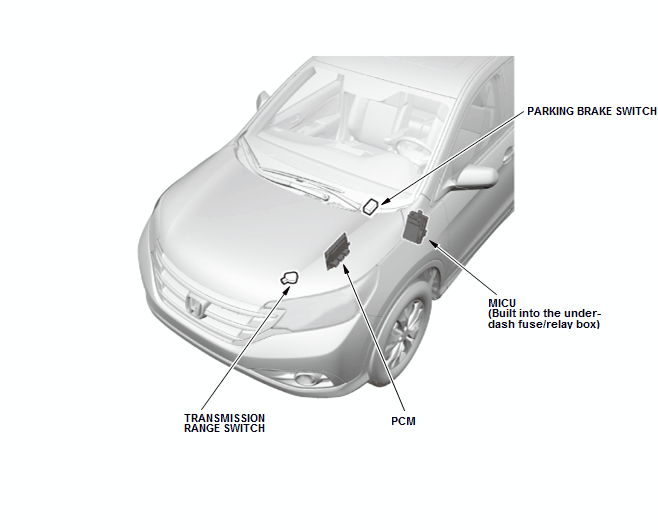

GHH51460

Courtesy of HONDA, U.S.A., INC.

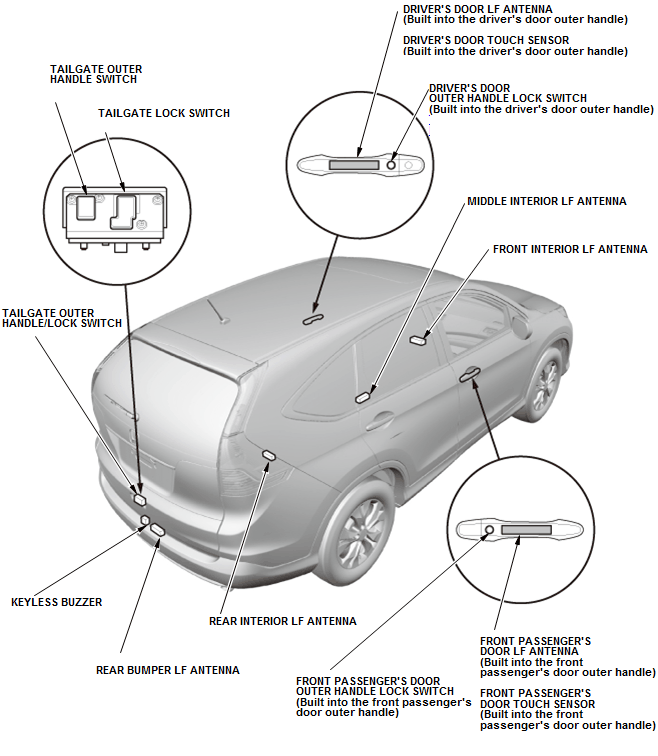

GHH51461

Courtesy of HONDA, U.S.A., INC.

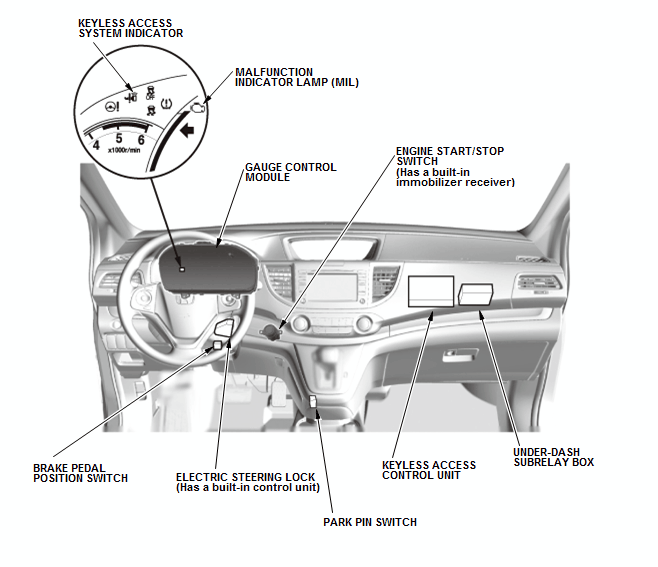

GHH51462

Courtesy of HONDA, U.S.A., INC.
