Test Procedure

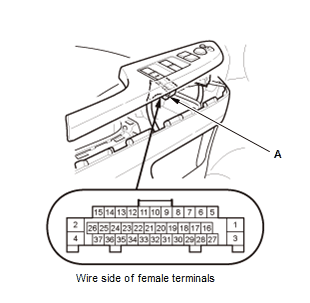

Without Door Multiplex Control Unit

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

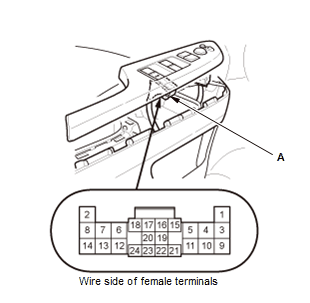

With Door Multiplex Control Unit

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

1. Test the motor in each direction by connecting 12 volt battery power and ground to the power window master switch connector (A) according to the table. When the motor stops running, disconnect 12 volt battery power immediately.

• If the motor does not run or fails to run smoothly, remove the driver's power window regulator , then go to step 2.
• If the motor runs smoothly, go to Hall IC Unit (Pulser) Test.

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

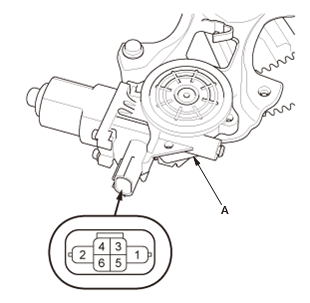

2. Test the driver's power window motor (A) by connecting 12 volt battery power and ground according to the table. When the motor stops running, disconnect 12 volt battery power immediately. 3. If the motor does not run or fails to run smoothly, the driver's power window motor is faulty; replace the driver's power window motor . If the motor runs smoothly, replace the wire harnesses.

Courtesy of HONDA, U.S.A., INC.

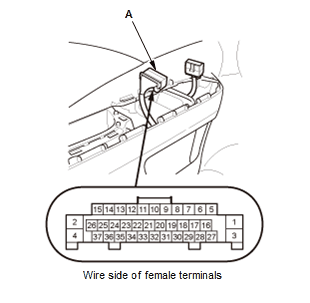

Without Door Multiplex Control Unit

1. Do the power window master switch (A) input test terminals No. 19, No. 22, and No. 23 - Refer to: Power Window Master Switch Input Test (Without Door Multiplex Control Unit) Power Window Master Switch Input Test (With Door Multiplex Control Unit)  .

MTR SVCC circuit

MTR PLSA and MTR PLSB circuits

• If the input test is OK, replace the power window master switch .
• If the input test is not as specified, check the driver's door harness. If the harness is OK, the Hall IC Unit (Pulser) is faulty; replace the driver's power window motor .

Courtesy of HONDA, U.S.A., INC.

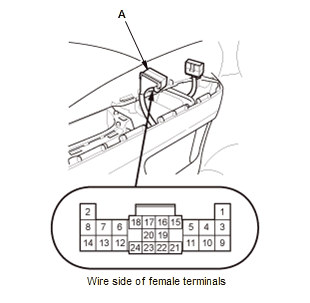

With Door Multiplex Control Unit  1. Disconnect the driver's power window motor connector 2. Check for continuity between driver's power window motor connector terminal No. 4 and body ground. There should be continuity. If there is continuity, reconnect the motor connector, then go to step 3. If there is no continuity, check for an open or high resistance in the BLK wire or poor ground (G501). 3. Do the power window master switch (A) input test terminals No. 13, No. 17, and No. 19 - Refer to: Power Window Master Switch Input Test (Without Door Multiplex Control Unit) Power Window Master Switch Input Test (With Door Multiplex Control Unit)  . MTR SVCC circuit

MTR PLSA and MTR PLSB circuits

• If the input test is OK, replace the power window master switch .
• If the input test is not as specified, check the driver's door harness. If the harness is OK, the Hall IC Unit (Pulser) is faulty; replace the driver's power window motor .
