Rocker Arm Assembly Removal & Installation: Installation

1. If the rocker arm assembly is disassembled, reassemble the rocker arm assembly .

Courtesy of HONDA, U.S.A., INC.

1. Apply liquid gasket  to the cylinder head mating surface of the No. 5 rocker shaft holder and to the inside edge of the threaded bolt holes.

2. Install the lost motion assembly in the cylinder head.

NOTE:  Apply new engine oil to the lost motion assembly.

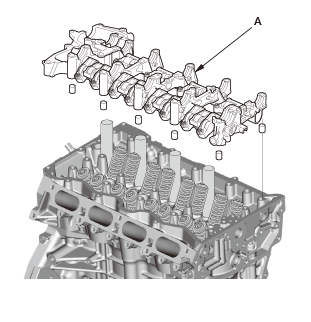

3. Install the rocker arm assembly (A) on the cylinder head.
