CR-V EX-L, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System & Engine Mechanical - Testing & Troubleshooting
›
Circuit Diagram
›

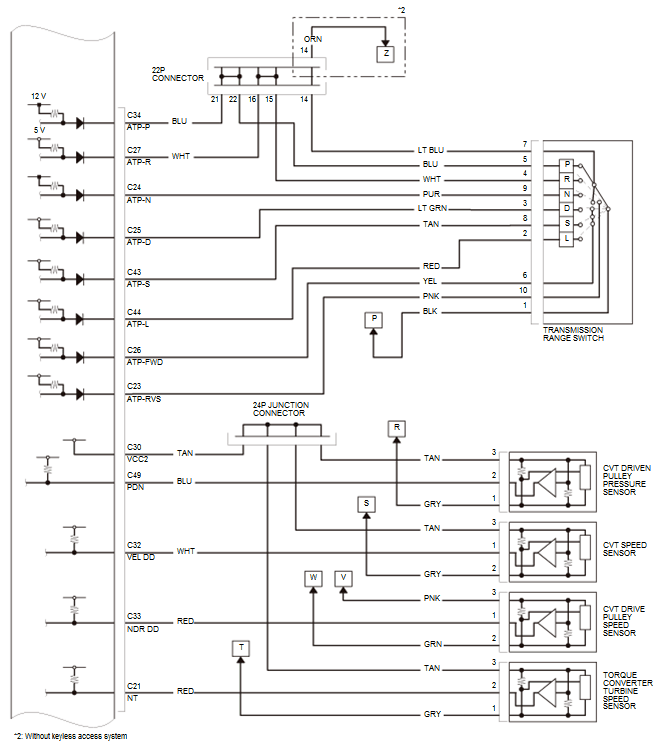

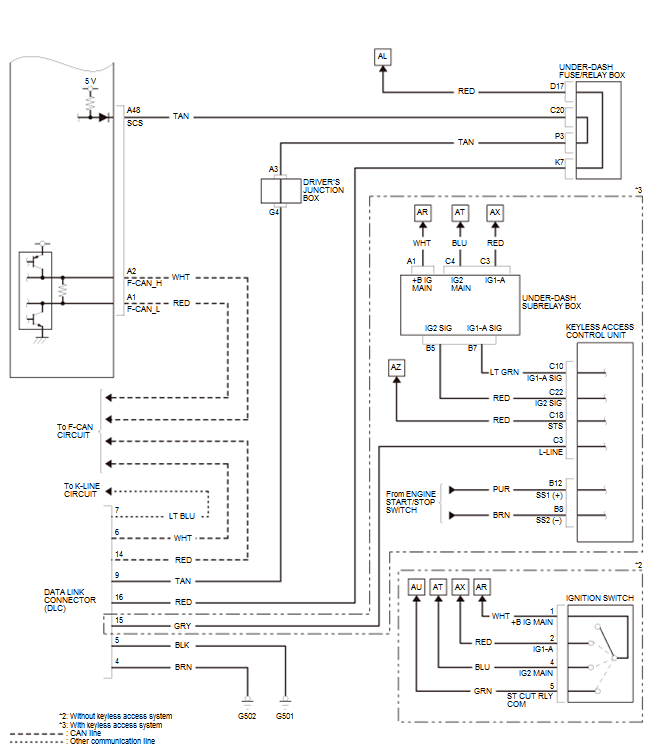

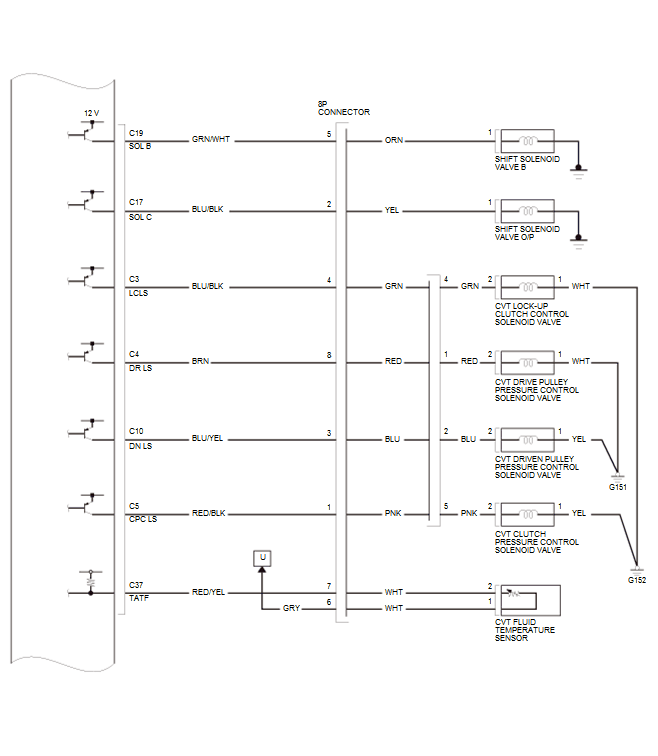

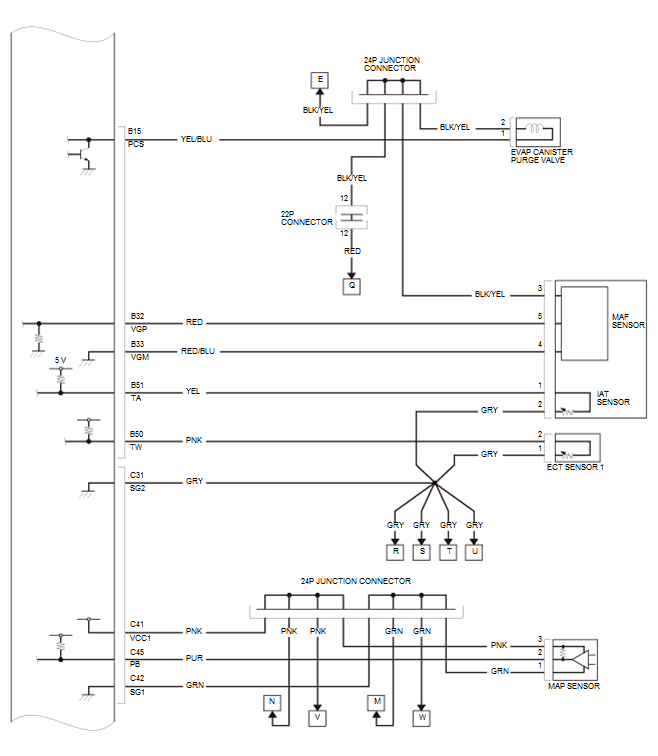

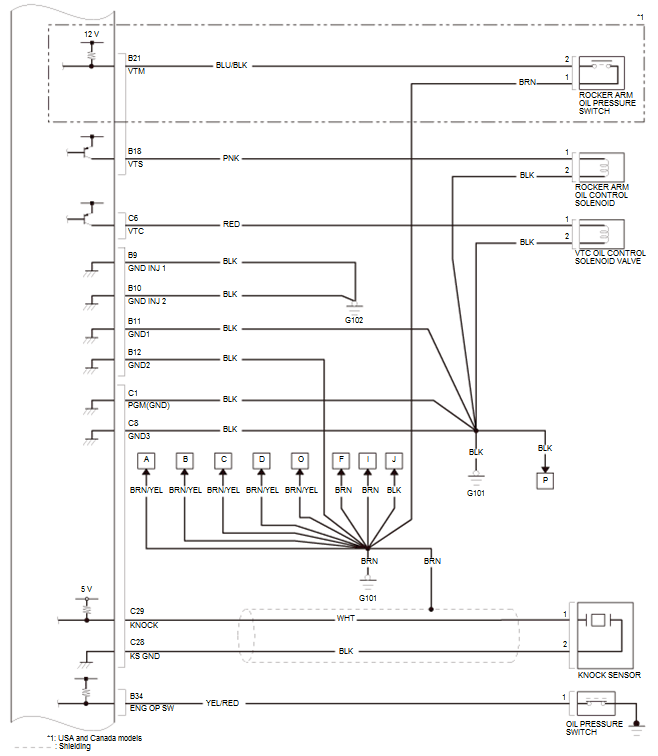

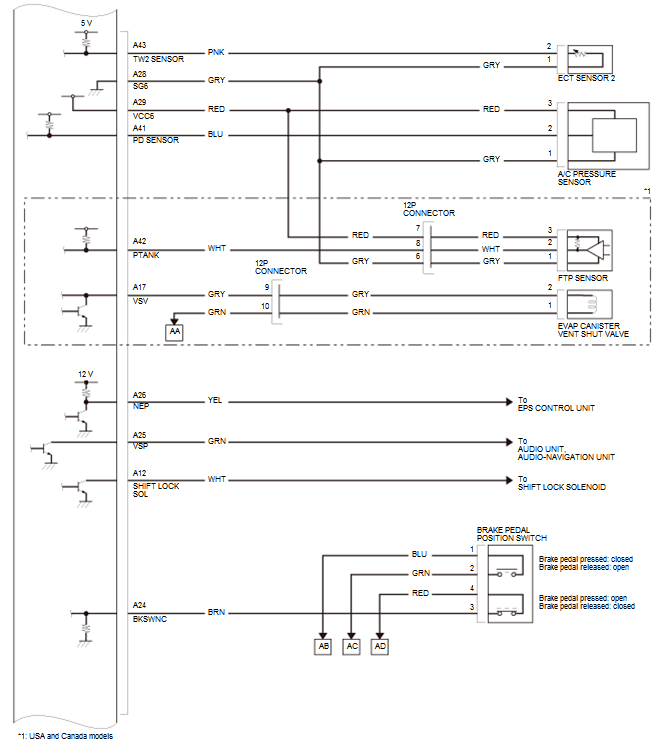

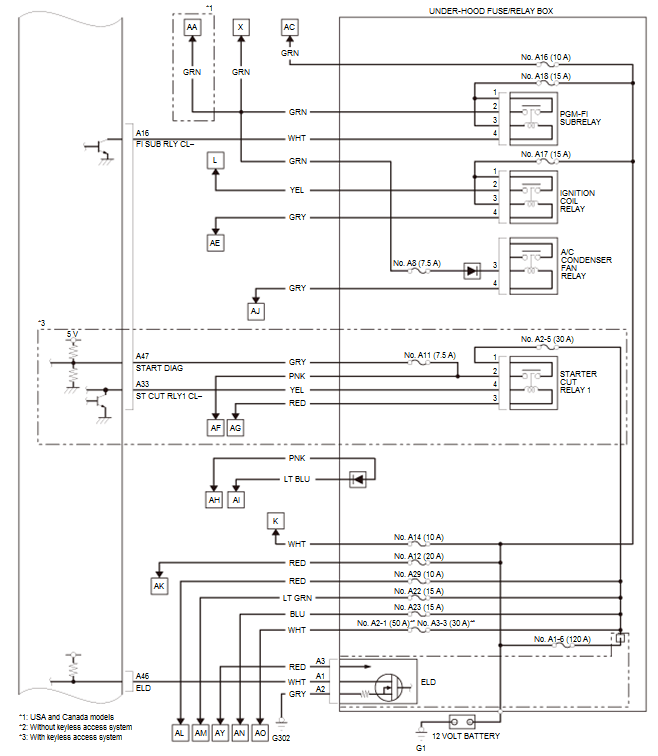

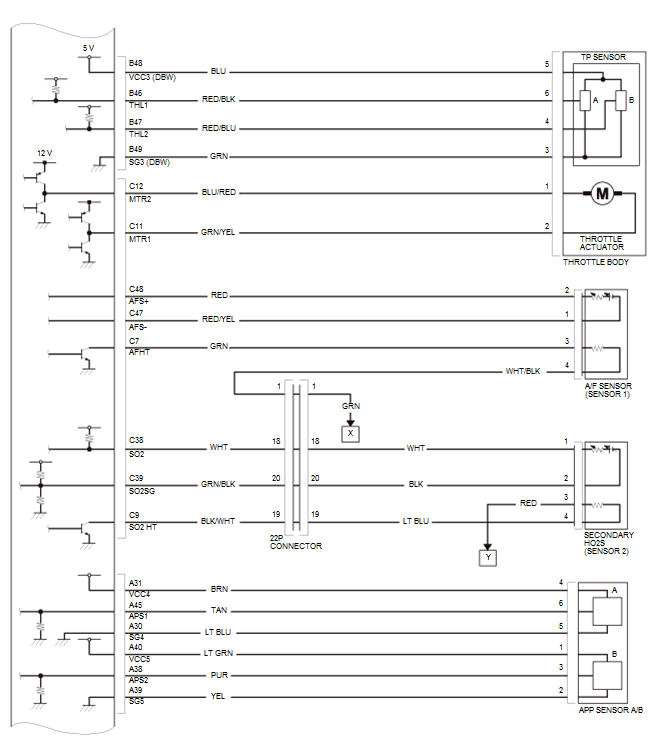

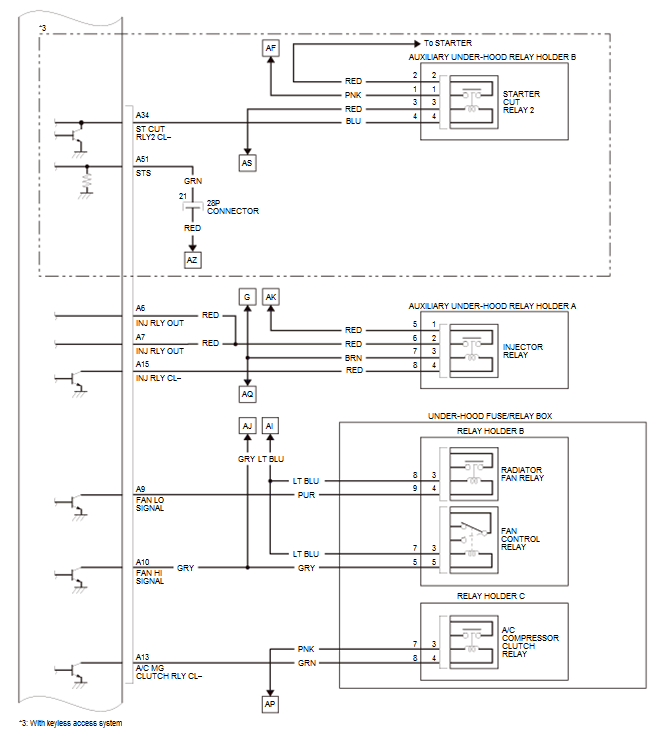

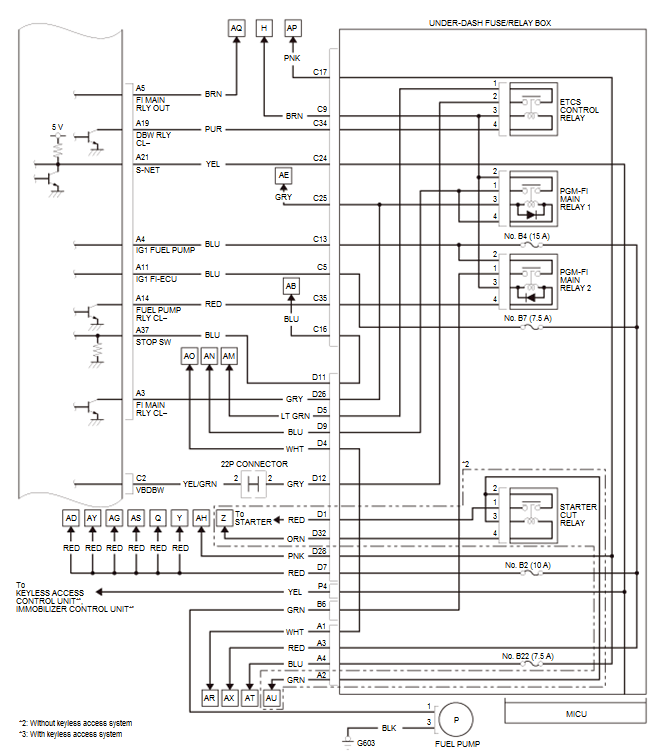

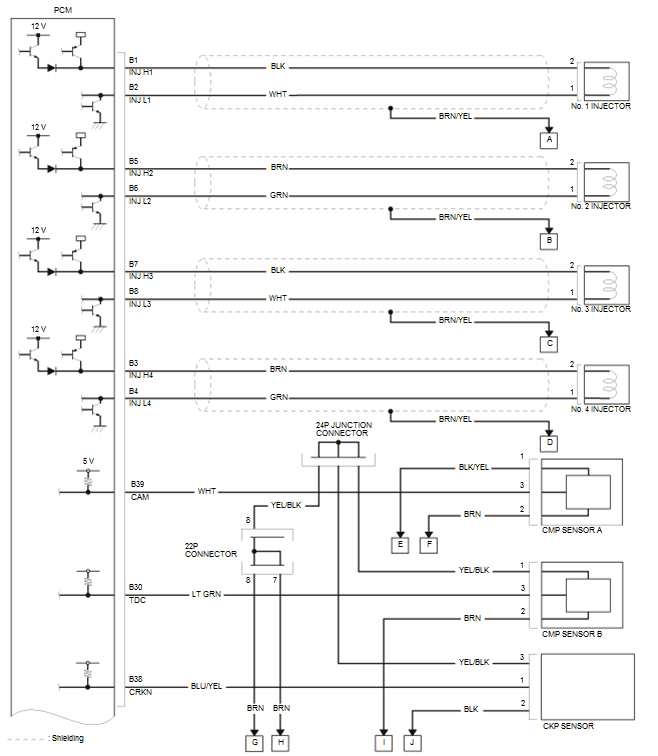

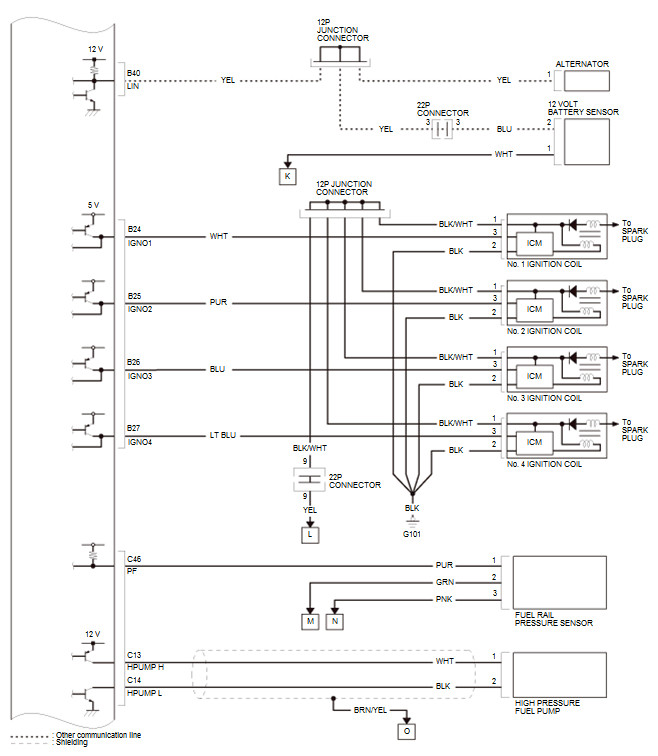

Fuel and Emissions Systems Circuit Diagram
Fuel and Emissions Systems Circuit Diagram
