Cylinder Head Assembly Component Location Index

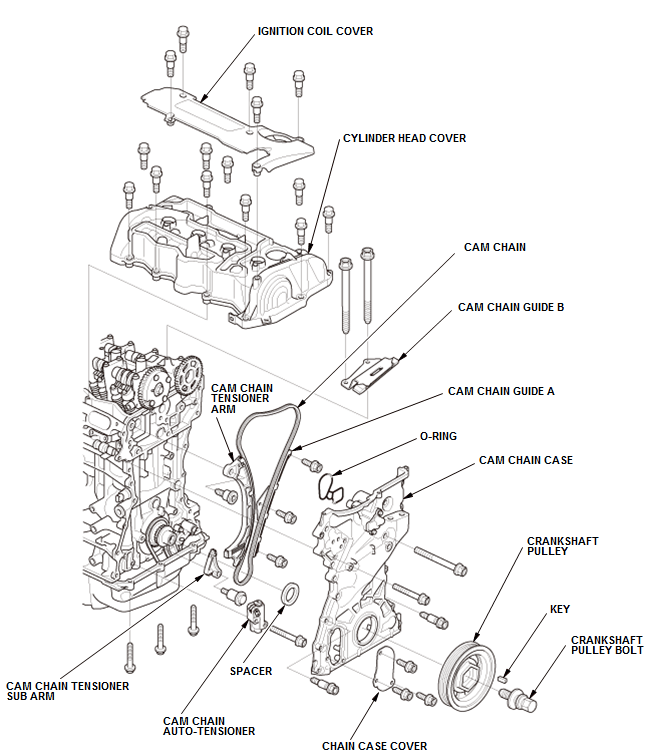

GHH49338

Courtesy of HONDA, U.S.A., INC.

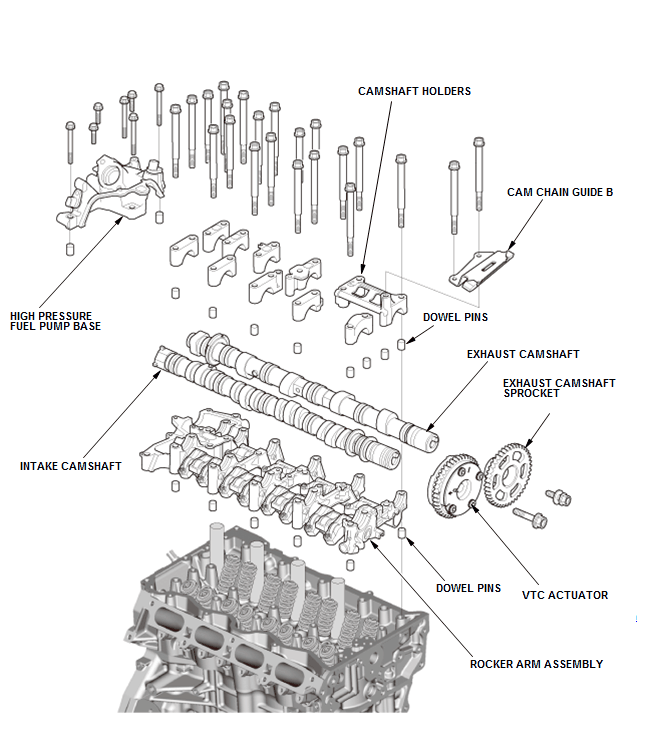

GHH49339

Courtesy of HONDA, U.S.A., INC.

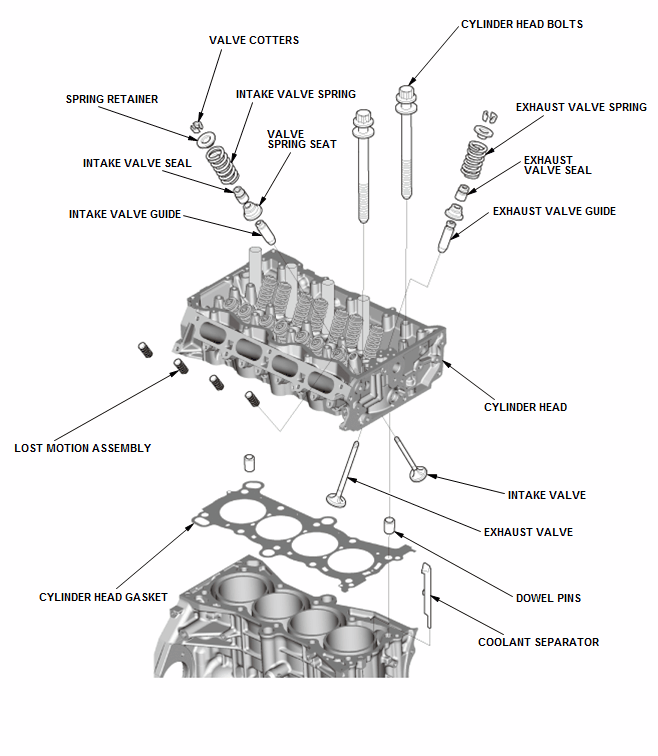

GHH49340

Courtesy of HONDA, U.S.A., INC.
