Engine Control System & Engine Mechanical - Testing & Troubleshooting
›
Component Location Index
›

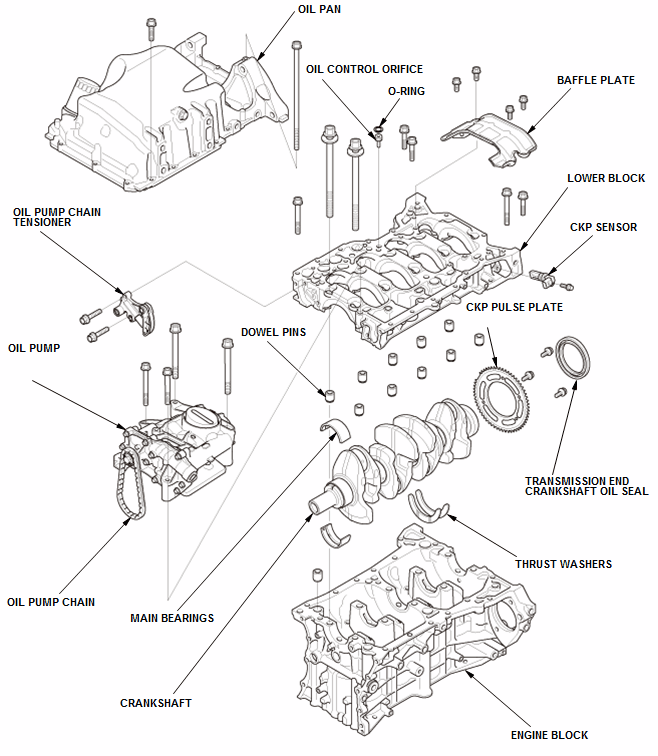

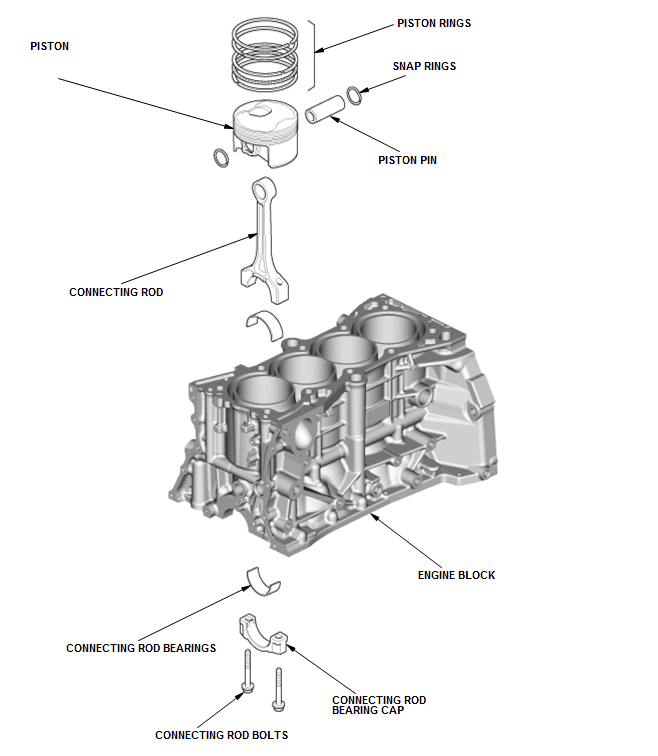

Engine Block Assembly Component Location Index
Engine Block Assembly Component Location Index
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
