Security System / Keyless Entry System - Testing & Troubleshooting
›
Description
›

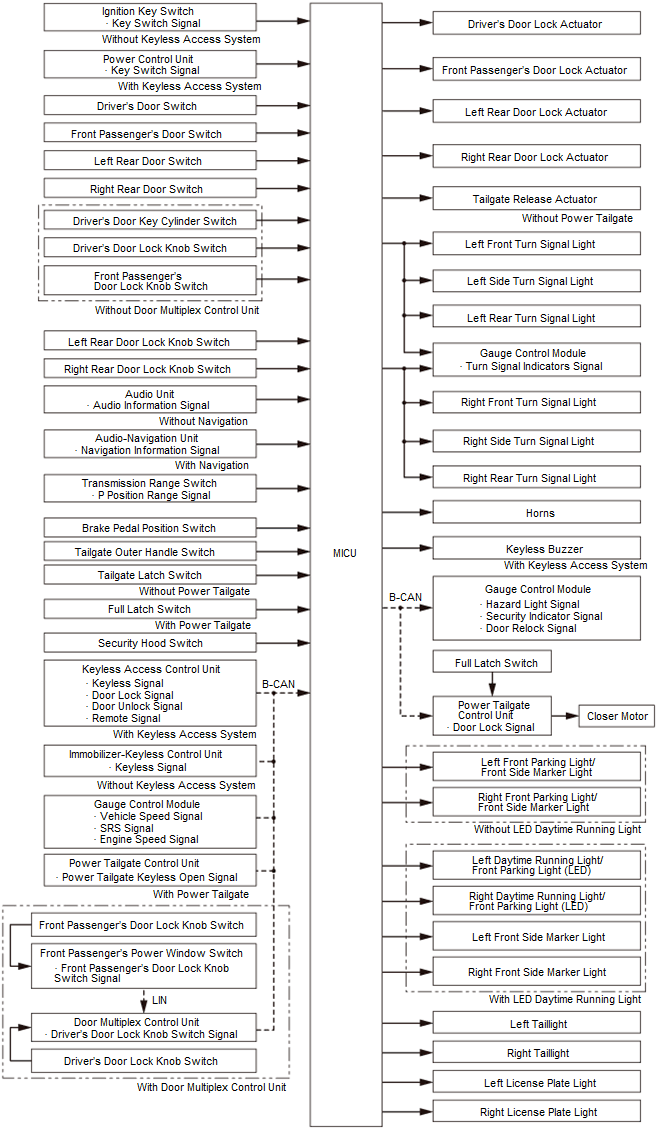

Keyless/Power Door Locks/Security System Description - System Diagram
Keyless/Power Door Locks/Security System Description - System Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
