Driver's Power Seat Adjustment Switch Test(DPMS): Test

1. Driver's Seat Belt Lower Anchor Bolt - Remove (Without Lap Belt Tensioner)
2. Driver's Seat Recline Cover - Remove
NOTE: If you are removing the driver's seat recline cover, you do not need to remove the driver's seat.

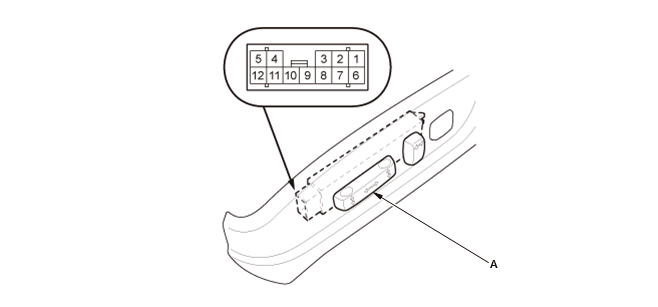

3. Driver's Power Seat Adjustment Switch - Test

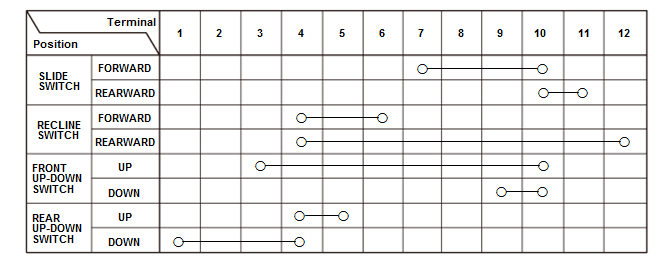

1. Check for continuity between the terminals in each switch position according to the table.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

2. If the continuity is not as specified, replace the driver's power seat adjustment switch (A) - Refer to: Driver's Power Seat Adjustment Switch Removal and Installation Driver's Power Seat Adjustment Switch Removal and Installation(DPMS) .
4. All Removed Parts - Install the parts in the reverse order of removal.
