Models with Display Audio or Center Display

You can calibrate the system from the customized feature on the audio/information screen.

1. Turn the ignition switch to ON.
2. Select HOME.
3. Select SETTINGS.
4. Select VEHICLE.
5. Select TPMS CALIBRATION.
6. Select CALIBRATE. When the calibration is complete, the display returns to the customization menu screen.
7. The calibration process finishes automatically. It requires approximately 30 minutes of cumulative driving at speeds between 30-65 mph (48-105 km/h).

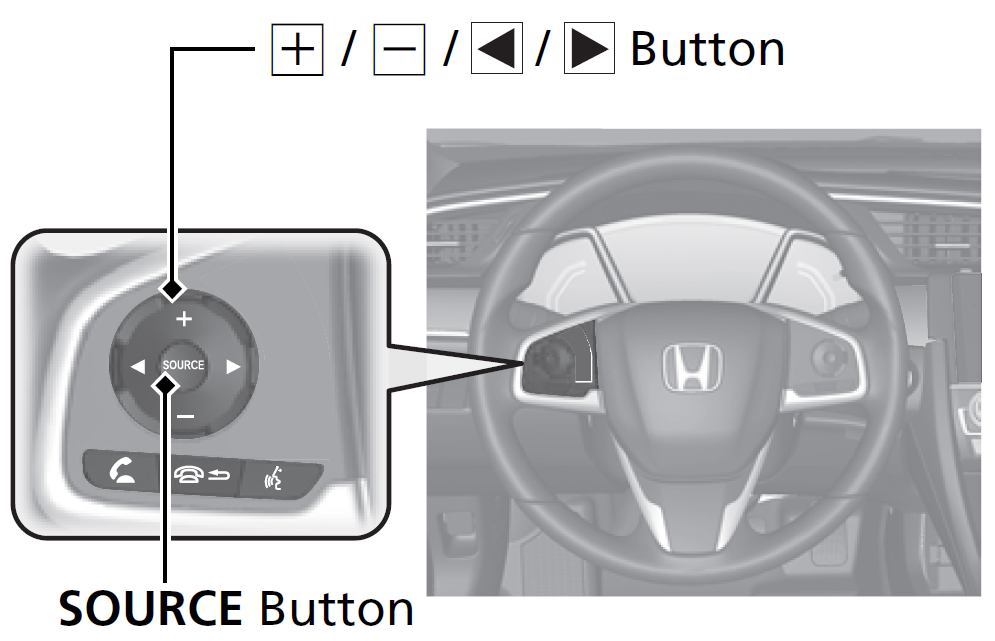

Fig 1: Identifying Display Audio Controls

Courtesy of AMERICAN HONDA MOTOR CO., INC.

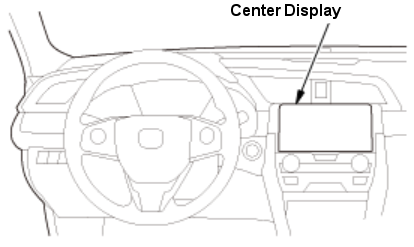

Fig 2: Identifying Center Display

Courtesy of AMERICAN HONDA MOTOR CO., INC.
