Cam Chain Auto-Tensioner Removal and Installation: Installation

Cam Chain Auto-Tensioner - Install

Courtesy of HONDA, U.S.A., INC.

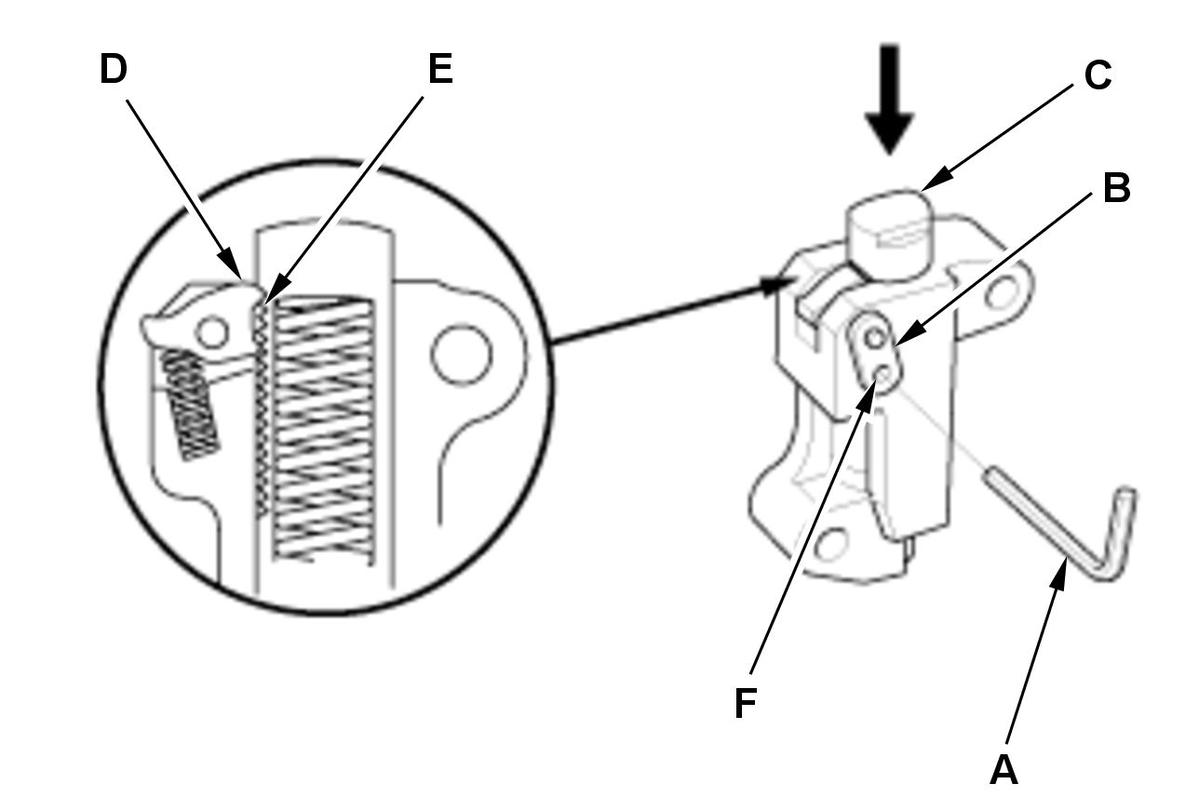

1. Compress the cam chain auto-tensioner when replacing the cam chain. Remove the pin (A) from the cam chain auto-tensioner that was installed during removal. Turn the plate (B) counterclockwise, to release the lock, then press the rod (C), and set the first cam (D) to the first edge of the rack (E). Insert the 1.0 mm (1/32 in) diameter pin back into the holes (F).NOTE: If the cam chain auto-tensioner is not set up as described, the cam chain auto-tensioner will be damaged.

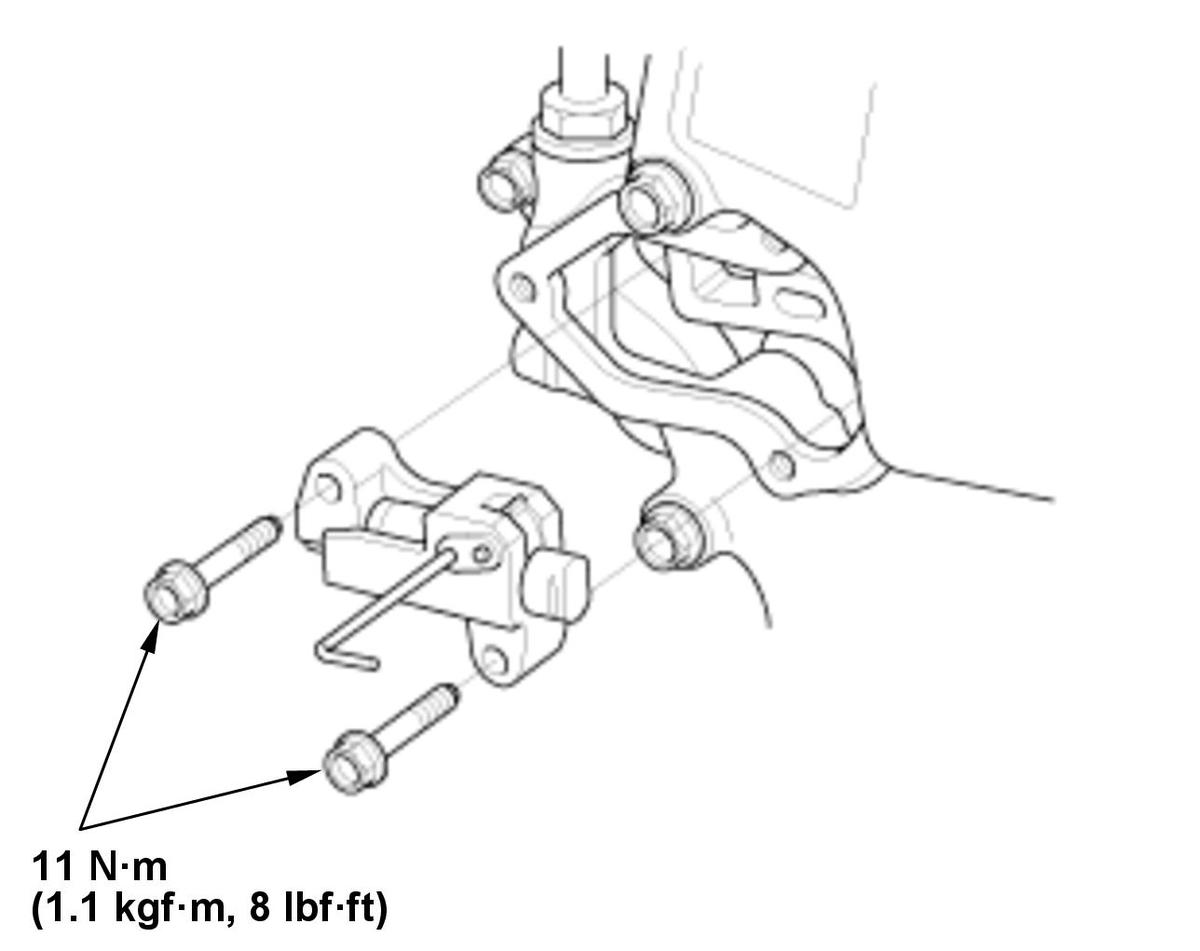

Fig 1: Cam Chain Auto-Tensioner With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

2. Install the cam chain auto-tensioner.

Courtesy of HONDA, U.S.A., INC.

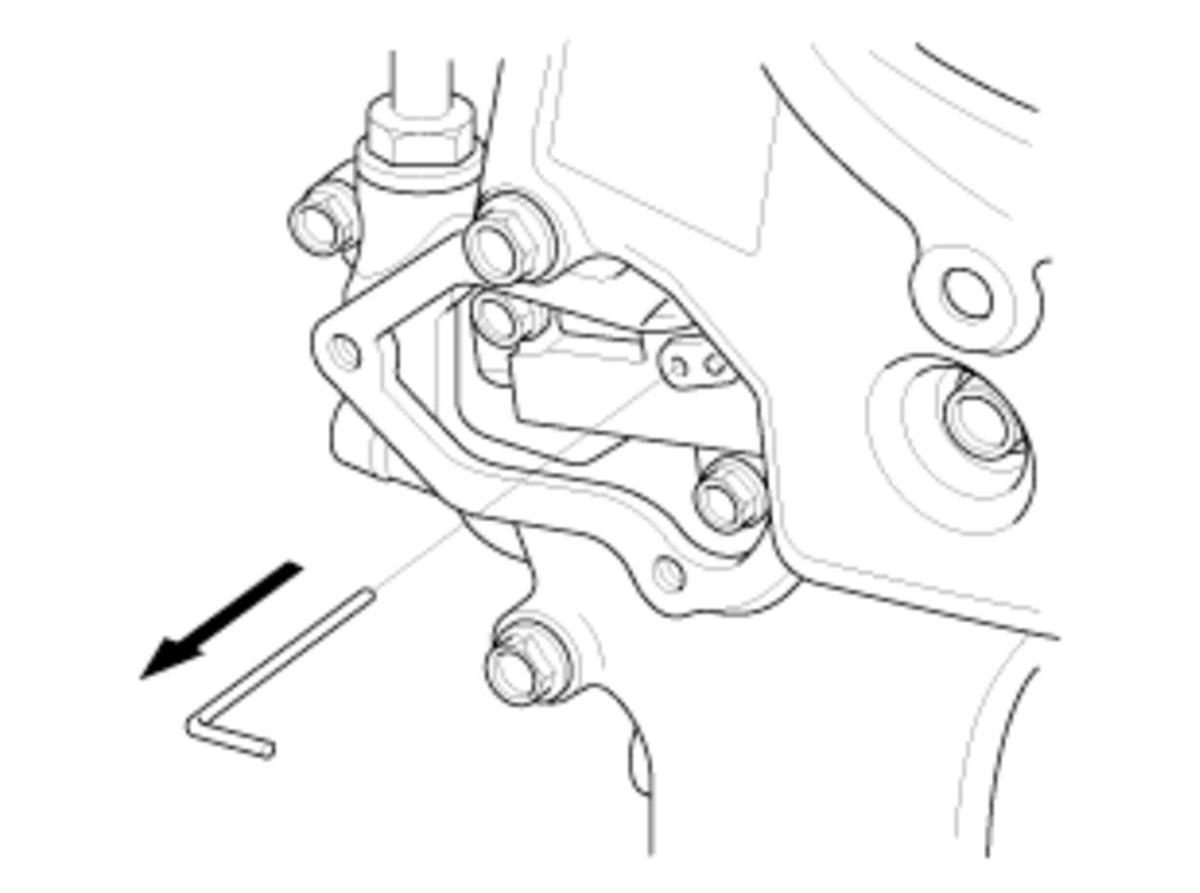

3. Remove the pin.

Cain Case Cover - Install

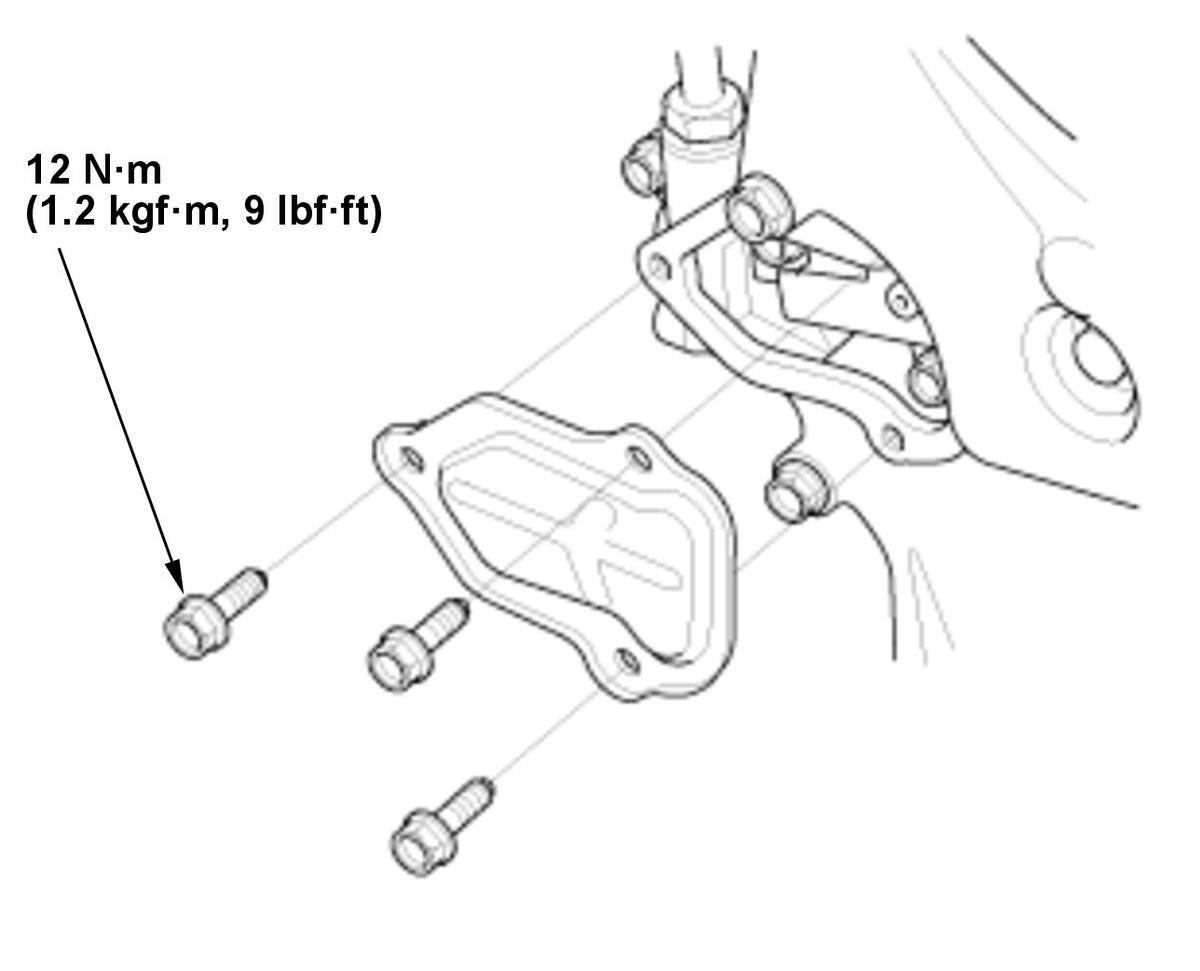

Fig 2: Cain Case Cover With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Apply liquid gasket

to the oil pump mating surface of the chain case cover, and to the inside edge of the threaded bolt holes.

2. Install the chain case cover.
