Shift Lever Installation

  1. Install the shift lever assembly (A).

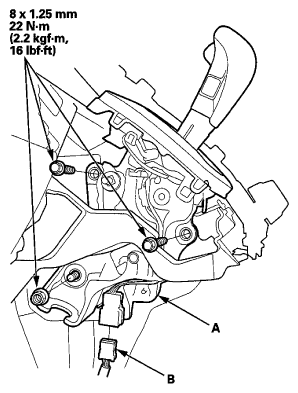

    Fig 1: Locating Shift Lever Assembly With Torque Specifications
    G06969191Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the shift lever connector (B).
  3. Push the shift cable (A) until it stops, then release it. Pull the shift cable back one step from the P position so that the shift position is in R. Do not hold the shift cable guide (B) to adjust the shift cable.
    Fig 2: Pushing Shift Cable Until It Stops
    G06969192Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Turn the ignition switch to ON (II), and check that the R position indicator comes on.
    Fig 3: Identifying R Position Indicator
    G06969193Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Turn the ignition switch to LOCK (0).
  6. With the shift lever in R, insert a 6.0 mm (0.236 in) pin (A) into the positioning holes (B). Use only a 6.0 mm (0.236 in) pin with no burrs.

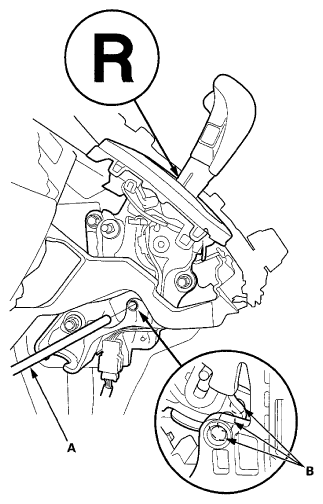

    Fig 4: Inserting 6.0 mm (0.236 in) Pin Into Positioning Holes
    G06969194Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Align the shift cable slot (A) between the socket holder (B) and the socket holder retainer (C) with the opening (D) in the shift cable bracket (E), then slide the holder into the bracket while installing the shift cable end (F) over the mounting stud (G) by aligning its square hole (H) with the square fitting (I) at the bottom of the stud. Do not install the shift cable by holding the shift cable guide (J).
    NOTE: When the socket holder is installed in the shift cable bracket, the retainer lock is unhinged and releases the holder retainer lock, then the holder retainer returns under spring force to secure the shift cable.

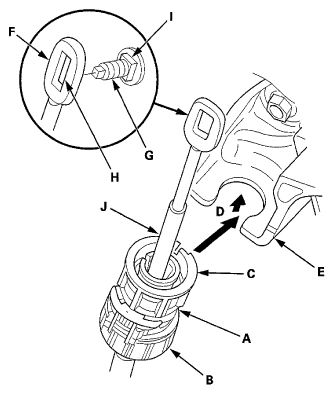

    Fig 5: Aligning Shift Cable Slot Between Socket Holder And Socket Holder Retainer With Opening In Shift Cable Bracket
    G06969195Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Push the retainer lock (A) fully to lock the socket holder retainer (B), and make sure that the retainer lock fits into the hinged-joint (C). If the retainer lock does not fit with the edge of the hinged-joint, rotate the holder retainer counterclockwise while pushing the retainer lock until it locks.
    Fig 6: Pushing Retainer Lock Fully To Lock Socket Holder Retainer
    G06969196Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Make sure that the shift cable end (A) is properly installed on the mounting stud (B).
    • If the cable end is out of position with the mounting stud, remove the shift cable from the shift cable bracket, then reinstall the cable end over the mounting stud before reinstalling the shift cable to the shift cable bracket. Do not install the shift cable end on the mounting stud with the shift cable install on the shift cable bracket.
    • If the shift cable end does not ride at the bottom of the mounting stud, rotate the stud to align the square fitting with the hole.
      Fig 7: Identifying Shift Cable End And Mounting Stud
      G06969197Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Install and tighten the nut (A) on the shift cable end.

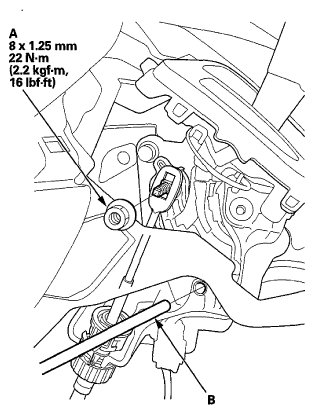

    Fig 8: Locating Shift Cable End Nut And 6.0 mm (0.236 in) Pin With Torque Specifications
    G06969198Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Remove the 6.0 mm (0.236 in) pin (B) that was installed to hold the shift lever.
  12. Turn the ignition switch to ON (II). Move the shift lever to each position, and check that the A/T gear position indicator follows the transmission range switch.
  13. Shift the shift lever to P, and check that the shift lock works properly. Push the shift lock release, and check that the shift lever releases, and also check that the shift lever locks when it is shifted back to P.
  14. Install these parts:
