Component Location Index
›

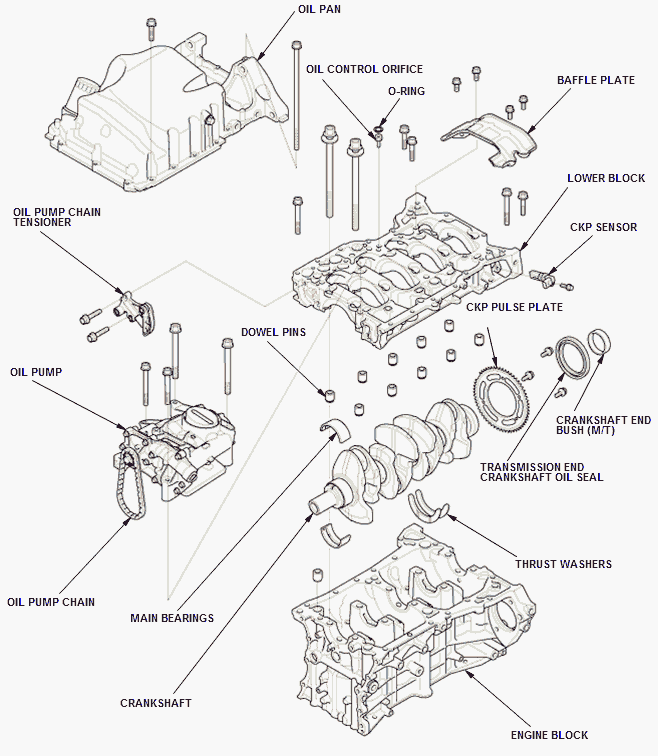

Engine Block Assembly Component Location Index (L4)

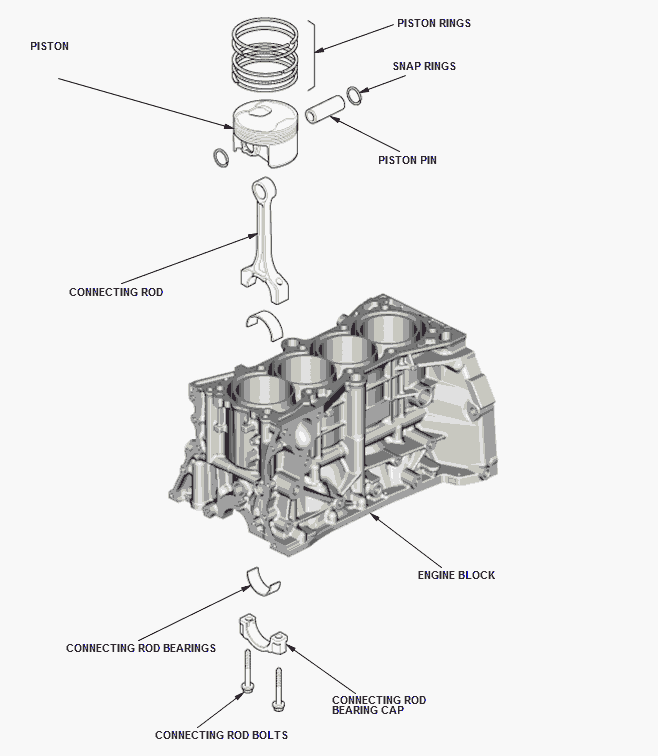

Engine Block Assembly Component Location Index (L4)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
