Engine Control / Engine Mechanical - Service, Testing & Troubleshooting
›
Component Location Index
›

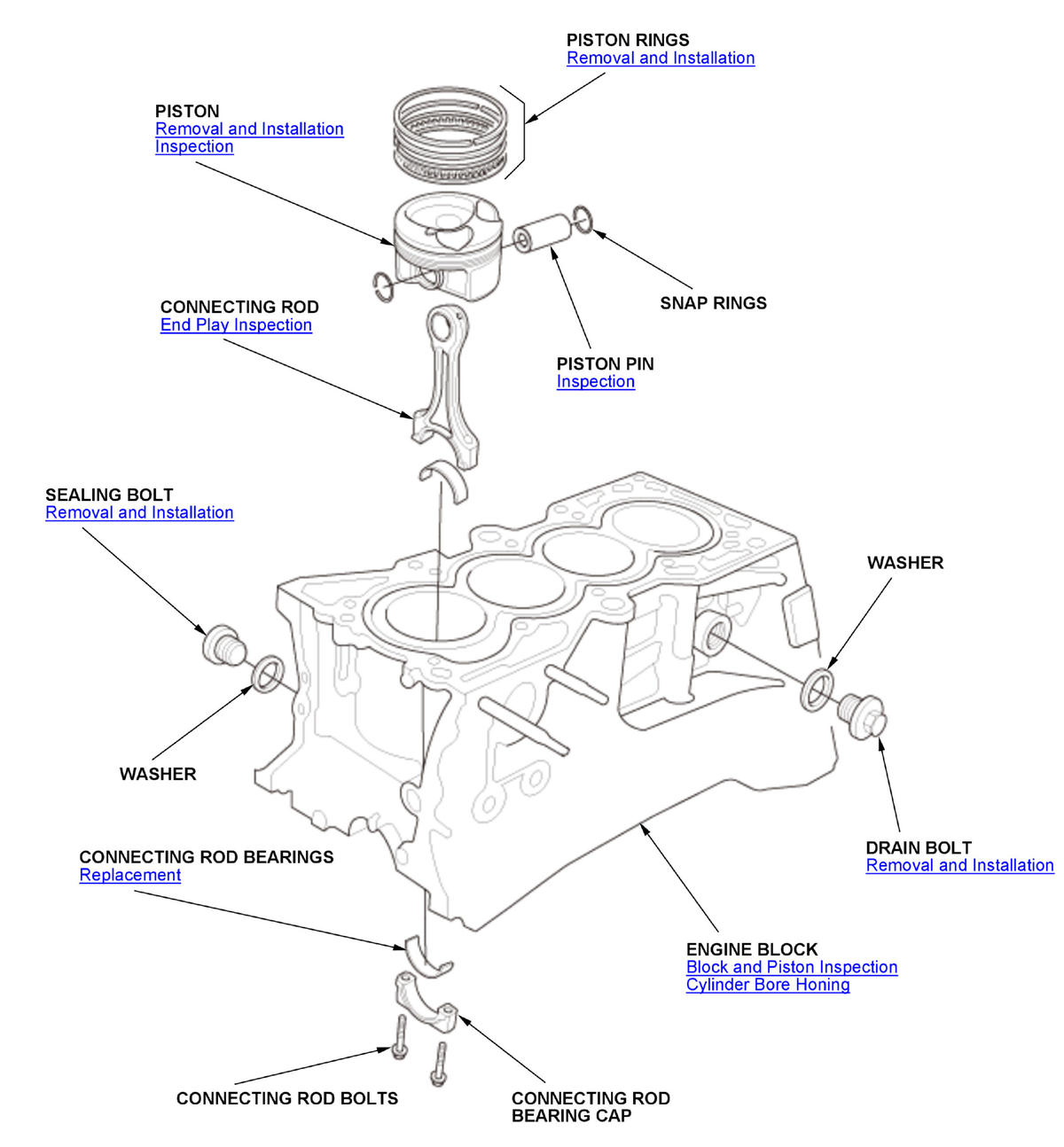

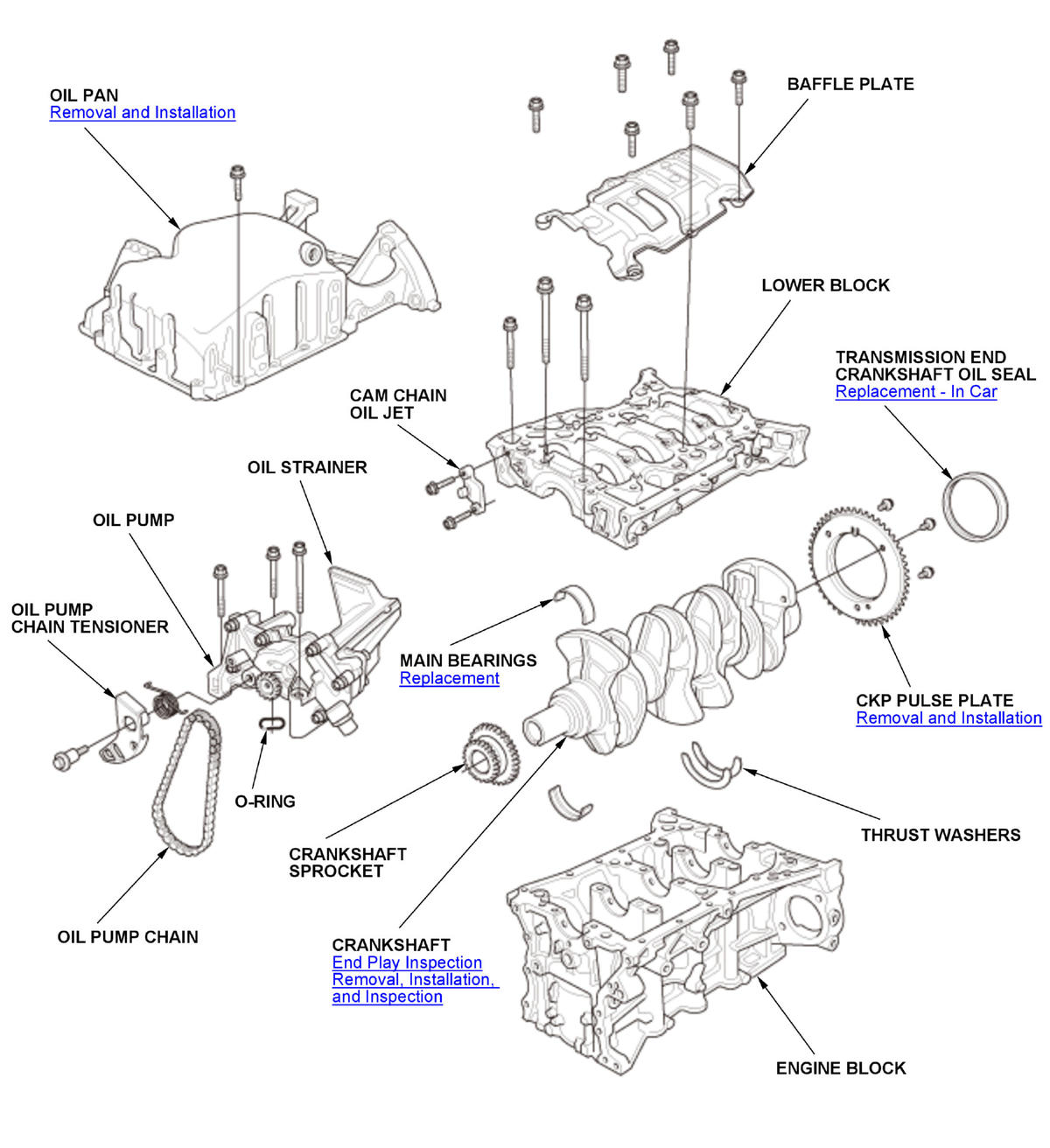

Engine Block Assembly Component Location Index (K20C1)
Engine Block Assembly Component Location Index (K20C1)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
